Qiang Zhanga, Guoqing Yiea, Yie Lia, Qingsong Yanga, T. Nagaib,⚹
aDepartment of Pharmacy, School of Pharmaceutical Sciences, Beijing Medical University, Beijing 100083, People’s Republic of China; b Department of Pharmaceutics, Hoshi University, Ebara 2-4-41, Shinagawa-ku, Tokyo 142, Japan.
T. Nagai, Tel.: + 81-3-59400385; fax: + 813-59400386; E-mail: nagai@hoshi.ac.jp.
Abstract
Stearic acid nanoparticles were prepared in this study by melt-homogenization to investigate the possibility of them as a new kind of drug carrier system. Some physicochemical properties of stearic acid nanoparticles were studied and morphology examined by transmission electron microscope. Cyclosporin A as a model drug was then encapsulated into stearic acid nanoparticles. Following the establishment of high performance liquid chromatography assay for cyclosporin A analysis in stearic acid nanoparticles or blood samples, the encapsulation ratio of cyclosporin A to stearic acid nanoparticles was estimated and pharmacokinetics as well as bioavailability of cyclosporin A stearic acid nanoparticles after oral administration to Wistar rats were studied, using the Sandimmun Neoral® (an available microemulsion system of cyclosporin A) as a reference. The mean diameter of cyclosporin A stearic acid nanoparticles was 316.1 nm, while the encapsulation ratio of cyclosporin A to stearic acid nanoparticles reached to 88.36%. It was demonstrated by IR spectra and differential scanning calorimetry that there was no chemical reaction occurred between the cyclosporin A and stearic acid. The relative bioavailability of cyclosporin A stearic acid nanoparticles over reference was nearly 80%, and the time to reach maximum concentration (Tmax) of cyclosporin A after oral administration of cyclosporin A stearic acid nanoparticles was delayed significantly than the reference, suggesting an obvious sustained release effect. The stearic acid nanoparticles might be a very potential drug carrier. © 2000 Published by Elsevier Science B.V. All rights reserved.
Keywords: Drug carrier; Stearic acid; Nanoparticles; Cyclosporin A; Relative bioavailability.
Introduction
Particulate drug delivery system, such as nanoparticles and microspheres has been studied extensively in the past 10 years. But the toxicity of the carrier materials was still remained to be problems since the synthesized polymers such as alkylcyanoacrylate, poly(lactic acid), methylmethacrylate, and so on were often used. The possible accumulation and their toxic metabolic product were still worth to be further studied.
In order to choice a better carrier material, an endogenous longchain saturated fatty acid (stearic acid) was studied in this investigation. The stearic acid is a main composition of fat, so it was expected to have better biocompatibility and lower toxicity than the synthesized polymers. Because it is solid at room temperature it was supposed to be more stable than liposome or emulsion. Stearic acid is available for pharmaceutical use and it is easy to prepare the nanoparticles with it. Several approaches on preparation (Schwarz and Wehnert, 1997; Freitas and Muller, 1998), stability (Heiati, et al., 1998; Freitas and Muller, 1999) and other aspects (Bargoni et al., 1998; Morel et al., 1998) have been reported recently about solid lipid nanoparticles.
The purpose of our present investigation was to evaluate the possibility of stearic acid nanoparticles as a new kind of drug carrier, through the studies of preparation procedure, physicochemical properties, quality as well as the pharmacokinetics and bioavailability of cyclosporin A (model drug) stearic acid nanoparticles after oral administration to rats.
Materials and methods
Materials
Cyclosprione A was obtained from Sichuan Industrial Institute of Antibiotics (Chengdu, China). Cyclosprione D was a gift from Northern-China Pharmaceutical Plant (Shijiazhuang, China). Stearic acid was the product of Shanghai People’s Chemical Plant (Shanghai, China). Lecithin and Poloxomer were purchased from Sigma (St Louis, MO). Sandimmun Neoral® (microemulsion system of cyclosporin A) was the product of Sandoz (Sweden). Methanol and acetonitrile were purchased from Beijing People’s Chemical Plant (Beijing, China). All other chemicals and solvents were of analytical grade.
Preparation ofstearic acid nanoparticles
Stearic acid nanoparticles were prepared by melt-homogenization (Siekmann and Westesen, 1994). Briefly, the aqueous solution containing surfactants was heated to 75°C, then under me-chanical stirring the solution was added to stearic acid melted at the same temperature. The stirring was kept to form stearic acid nanoparticles until room temperature.
Physicochemical properties ofstearic acid nanoparticles
The morphology of stearic acid nanoparticles was examined by transmission electron microscope. Zeta potential was measured by an U- tube electrophoresis apparatus, surface tension by maximum bubble method, turbidity by recording the absorption at 600 nm, relative density by an areometer, viscosity by an Ubbe- lohde viscometer, pH value by a pH-25 acidime- ter and refractive index by an Abbe refracto- meter.
Preparation of cyclosporin A stearic acid nanoparticles
Cyclosporin A stearic acid nanoparticles were obtained by the same approach mentioned above, except that cyclosporin A and stearic acid were melted together.
Encapsulation ratio of cyclosporin A to stearic acid nanoparticles
Cyclosporin A stearic acid nanoparticles were separated from the liquid medium by centrifuging (60 000 rpm, 2 h). The sediment obtained was dissolved in methanol, then analyzed at 55°C in a high performance liquid chromatography system with an Alltech C18 column (5 pm, 250 mm x 4.6 mm). The samples were eluted with methanol:water (90:10) at a flow rate of 1.0 ml/ min and detected at 214 nm. Encapsulation ratio (ER) of cyclosporin A to stearic acid nanoparticles was calculated from: ER = (Wm/ Wa) x 100%, where Wm represents the amount of cyclosporin A found while Wa means the amount of cyclosporin A added.
Particle size of cyclosporin A stearic acid nanoparticles
The colloidal solution of cyclosporin A stearic acid nanoparticles was diluted with distilled water, then analyzed in a particle size analyzer.
IR spectra and differential scanning calorimetry analysis
The IR spectra of cyclosporin A, freeze-dried stearic acid nanoparticles and freeze-dried cy-closporin A stearic acid nanoparticles were prepared in a IR spectrometer. The differential scanning calorimetry thermograms of stearic acid, the mixture of cyclosporin A and stearic acid, and the freeze-dried cyclosporin A stearic acid nanoparticles were made by a differential scanning calorimeter.
Analysis of cyclosporin A in blood samples
Cyclosporin A in blood samples was analyzed at 75°C by a high performance liquid chromatography system (Liang and Wu, 1992) with an Hy- persil 120 C18 packed column (5 pm, 150 mm x 4.6 mm). The samples were eluted with acetonitrile:methanol:water (60:10:30) at a flow rate of 1.5 ml/min and detected at 210 nm. Cy-closporin D was taken as the internal material.
Pharmacokinetics and bioavailability of cyclosporin A stearic acid nanoparticles in rats
Cyclosporin A stearic acid nanoparticles (the test) were compared with the reference, Sandimmun Neoral®. Ten 250 ± 25 g Wistar rats (Animal Center of Beijing Medical University), fasted overnight, were matched in pairs according to the body weight. After appropriate dilution, the single dose of cyclosporin A stearic acid nanoparticles or reference was given intragastrically to the rat in each pair, respectively. Venous blood were collected from the postorbital vein sinus before and over a 60-h period, then the plasma samples were separated and kept at 4°C until analysis.
The elimination rate constant (Kel) was calculated with log-linear regression, using the last three to five observations of each curve, and the elimination half-life (t1/2) was derived from 0.693/ Kel. The area under the plasma concentrationtime curve (AUC0-t) was calculated with the trapezoidal rule, and extrapolation of the area to infinity (AUC0-inf) was estimated by adding the last measured plasma concentration divided by the elimination rate constant (Kel). A computer program 3P87 (Administration of Health, Beijing, China) was used for the fitting of pharmacokinetic models, and also for the calculation of the maximum plasma concentration (Cmax) as well as the time to attain Cmax(Tmax). The relative bioavailability (Fr%) was calculated from (AUC0-inf for ‘test’/AUC0-inf for ‘reference’) x 100%.
Results
The colloidal solution of stearic acid nanoparti-cles prepared was white and milk-like. Most of the nanoparticles looked round and regular under transmission electron microscope as shown in Fig. 1. Their physicochemical properties of stearic acid nanoparticles were listed in Table 1.
Figure 1. Micrograph of stearic acid nanoparticles by transmission electron microscope ( x 14 000).

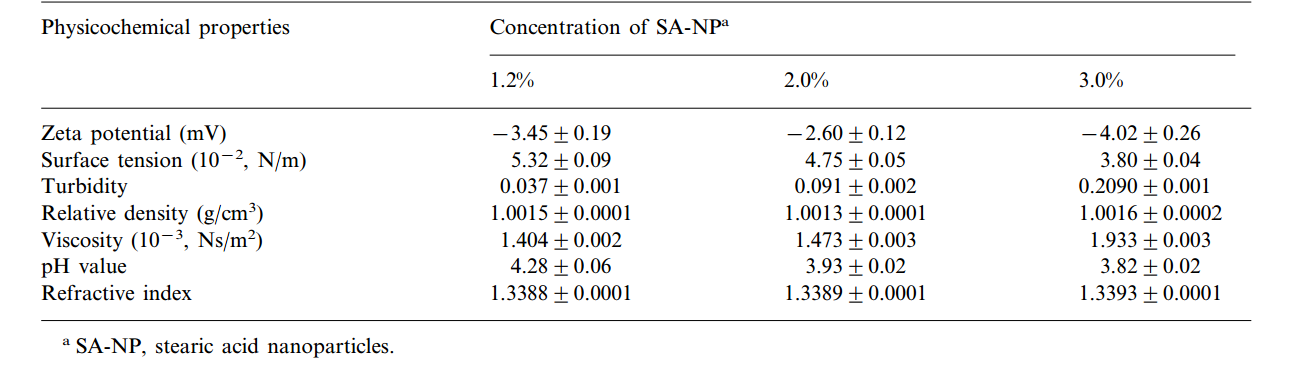

Table 1. Physicochemical properties of stearic acid nanoparticles (n=5).
The stearic acid nanoparticles were negatively charged, but the zeta potential was rather low. The surface tension and pH value of stearic acid nanoparticles decreased, while the viscosity and turbidity increased, as the concentration of stearic acid nanoparticles increased. Little change was observed in relative density and refractive index.
The encapsulation ratio of cyclosporin A to stearic acid reached to 88.36% as shown in Table 2, analyzed by HPLC method. The linear response of this assay ranged from 0.5 to 200 μg/ml. The analytical recoveries were 97.82, 100.03 and 100.71%, respectively, under three different concentration (5.0, 25.0 and 100.0 μg/ ml), while the relative standard deviation within day were 0.54, 0.56 and 1.62%, respectively.

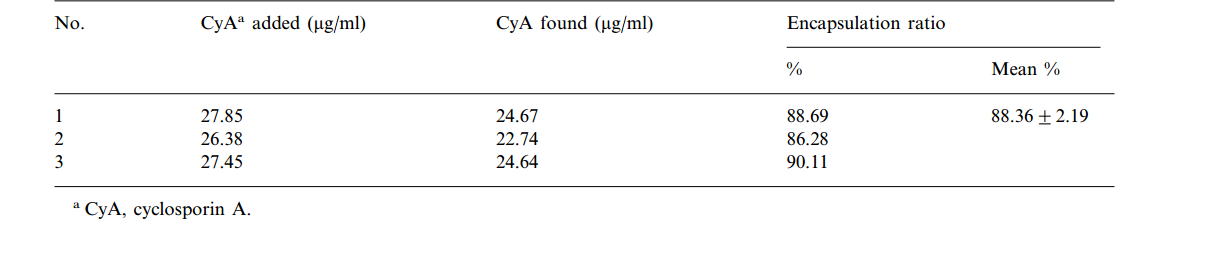

Table 2. Encapsulation ratio of cyclosporin A to stearic acid nanoparticles (n = 3).
The mean diameter of cyclosporin A stearic acid nanoparticles was 316.1 nm, and 84.4% of the cyclosporin A stearic acid nanoparticles distributed between 176 and 297 nm.
It was demonstrated by IR spectra in Fig. 2 that there was no chemical reaction occurred between the cyclosporin A and stearic acid, because the characteristic peaks of cyclosporin A and stearic acid did not show any shifts after encapsulation of cyclosporin A to stearic acid. Studies on differential scanning calorimetry came to the same conclusion.

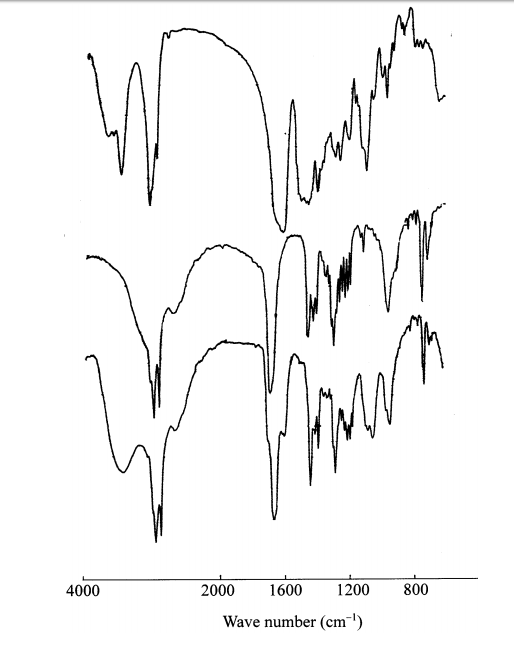

Figure 2. The IR spectra of cyclosporin A (upper), stearic acid (middle) and cyclosporin A stearic acid nanoparticles (down).
The baseline separation between cyclosporin A and cyclosporin D was achieved with the high performance liquid chromatography system estab-lished for analysis of cyclosporin A in blood samples. The standard curves were linear over the range of 50-1000 ng/ml, and the retention time of cyclosporin A and D were 6.96 and 9.16 min, respectively. The detective limitation was 20 ng/ ml. The analytical recoveries were 111.7, 101.1 and 100.8%, respectively under three different concentration (50, 300 and 1000 ng/ml), while the relative standard deviation within day were 5.3, 3.6 and 2.7%, respectively.
Cyclosporin A plasma concentrations (mean ± S.D.) for both single dose oral administration of cyclosporin A stearic acid nanoparticles and the reference were shown in Fig. 3, and the derived pharmacokinetic parameters in Table 3.

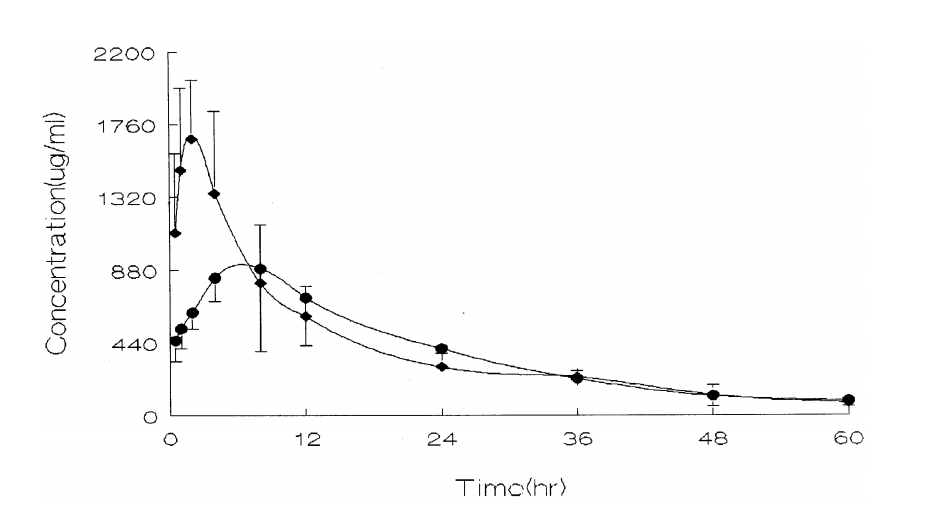

Figure 3. Mean plasma concentration of cyclosporin A vs. time curves after single oral administration of cyclosporin A stearic acid nanoparticles (•) or Sandimmun Neoral® (♦) to rats.

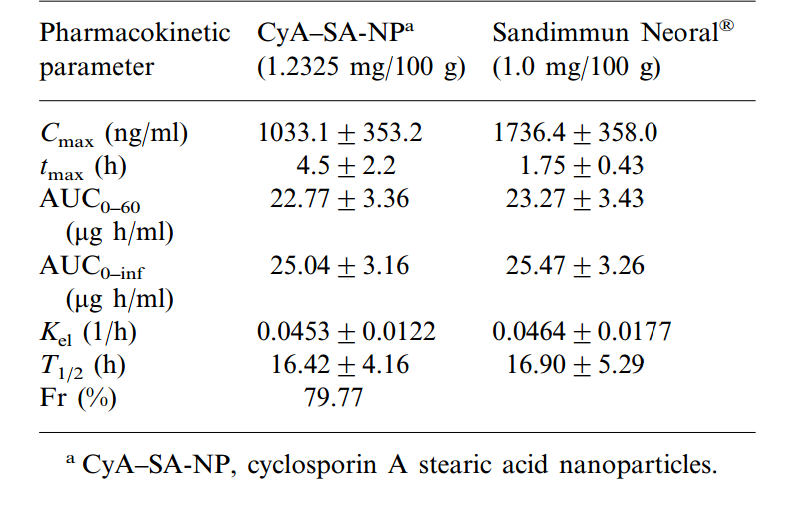

Table 3. Pharmacokinetic parameters of cyclosporin A after single dose oral administration of cyclosporin A stearic acid nanoparticles or Sandimmun Neoral® to Wistar rats.
A rapid increase followed by a rapid decrease in cyclosporin A plasma concentrations resulted after oral administration of microemulsion system of cyclosporin A, with Cmax occurring at about 1.7 h. Relatively slow increase and also slow decrease in cyclosporin A plasma concentrations were observed after administration of cyclosporin A stearic acid nanoparticles, with the Cmax of cyclosporin A occurring at 4.0 h which is delayed significantly (P < 0.05) than the reference, suggesting an obvious sustained release effect of it. The pharmacokinetic parameters such as Kel and t1/2 shown no statistically significant difference (P > 0.05) between the two treatments.
The relative bioavailability of cyclosporin A stearic acid nanoparticles over reference was nearly 80%, indicating that stearic acid nanopar-ticles could improve the absorption of some in-soluble drug, such as cyclosporin A, in the gastrointestinal tract. The cyclosporin A plasma concentration-time curve after single oral admin-istration of cyclosporin A stearic acid nanoparticles was well described by biexponential equation according to a one-compartment open model, while the cyclosporin A plasma concentrationtime data was well fitted by a two-compartment model with one-order absorption kinetics.
Discussion
The preparation techniques investigated in this work included solvent-evaporation and melt-ho-mogenization, and the sonication dispersion and mechanical dispersion had been used in meltho- mogenization. The stearic acid nanoparticles pre-pared by solvent-evaporation could be very small and unique but always aggregated to form pre-cipitation, while the nanoparticles obtained by sonication dispersion at high temperature were irregular and rather big in diameter. Mechanical dispersion from high temperature to room tem-perature was proved to be the best method in the preparation of stearic acid nanoparticles. Small, unique and stable tearic acid nanoparticles could be prepared with this technique. Effects of stirring time, stirring speed and temperature on the particle size and morphology were studied and the best formulation was selected. It was demonstrated that stirring time and speed show no obvious affects on the particle size and its homogeneity, and the present of cyclosporin A had no influence on the formation of nanoparticles.
It was observed in the established HPLC system that the temperature show great impact on the column efficiency, and the column efficiency increased with the rise of temperature. A temper-ature of 55°C was selected for the analysis tem-perature for analysis of cyclosporin A in stearic acid nanoparticles in consideration of column damage at high temperature. But higher temperature was employed for analysis of cyclosporin A in blood samples because more impurities existed and baseline separation of cyclosporin A and D was needed.
The Sandimmun Neoral®, an available microe-mulsion system of cyclosporin A was used as a reference in the studies of pharmacokinetics and bioavailability of cyclosporin A stearic acid nanoparticles after oral administration. As a new product of Sandoz, the microemulsion system, made of surfactants and oil phase, can form emulsion droplets only about 30 nm whenever it contact with water, so it is specially advantageous for the absorption of cyclosporin A, which is a typical poor soluble drug. Even compared with such formulation, the relative bioavailability of cyclosporin A stearic acid nanoparticles was nearly 80%, indicated that stearic acid nanoparticles could improve the absorption of cyclosporin A. The major reason of lower bioavailability of cyclosporin A stearic acid nanoparticles might be the size of the nanoparticles (316.1 nm) which is tenfold of the microemulsion droplets ( ≈ 30 nm), and other possibility may due to the different surfactants used.
It was noticed in Fig. 3 that the profiles of the cyclosporin A plasma concentrations after single dose oral administration of cyclosporin A stearic acid nanoparticles and Sandimmun Neoral® were quite different. It could be attributed to the different release rate of different delivery systems, because the insoluble cyclosporin A is rather ready to release from the liquid microemulsion droplets than from the solid nanoparticles.
The effect of food and particle size on the absorption of cyclosporin A in GI tract was re-mained to be further studied.
References
Bargoni, A., Cavalli, R., Caputo, O., et al., 1998. Solid lipid nanoparticles in lymph and plasma after duodenal admin-istration to rats. Pharm. Res. 15, 745-750.
Freitas, X., Muller, R.H., 1998. Spray-drying of solid lipid nanoparticles (SLN TM). Eur. J. Pharm. Biopharm. 46, 145-151.
Freitas, X., Muller, R.H., 1999. Correlation between longterm stability of solid lipid nanoparticles (SLN) and crystallinity of the lipid phase. Eur. J. Pharm. Biopharm. 47, 125-132.
Heiati, H., Tawashi, R., Phillips, N.C., 1998. Drug retention and stability of solid lipid nanoparticies containing azi- dothymidine palmitate after autoclaving, storage and lyophilization. J. Microencapsul. 15, 173-184.
Liang, Y., Wu, L.W., 1992. Measurement of cyclosporine in whole blood by high perforance liquid chromatography. Chin. J. Med. Lab. Tech. 15, 206-211.
Morel, L.S., Terreno, E., Ugazio, E., et al., 1998. NMR relaxometric investigations of solid lipid nanoparticles (SLN) containing gadolinium(III) complexes. Eur. J. Pharm. Biopharm. 45, 157-163.
Schwarz, C., Wehnert, W., 1997. Freeze-drying of drug-free and drug-loaded solid lipid nanoparticles (SLN). Int. J. Pharm. 157, 171-179.
Siekmann, B., Westesen, K., 1994. Thermoanalysis of the recrystallization process of melt-homogenized glyceride nanoparticles. Colloids Surf. B Biointerfaces 3, 159175.
