Frank Z. Stanczyk, PhD, Donna Shoupe. MD, Victoria Nunez, LVN, Priscilla Macias-Gonzales, Marcela A. Vijod, BS, Rogerio A. Lobo, MD.
From the Department of Obstetrics and Gynecology, University of Southern California School of Medicine, and Women’s Hospital, Los Angeles County University of Southern California Medical Center.
Presented at the Thirty-fifth Annual Meeting of the Society for Gynecologic Investigation, Baltimore, Maryland, March 17-20, 1988.
Reprint requests: Rogerio A. Lobo, MD, Women’s Hospital, Rm. 1M2, 1240 North Mission Rd., Los Angeles, CA 90033.
Abstract
We compared the transdermal and subdermal routes of estrogen administration with respect to the constancy of estrogen delivery and metabolic effects. Twenty postmenopausal women were randomized to receive either two 25 mg estradiol pellets subdermally (n = 10) or a 0.1 mg estradiol transdermal patch twice weekly (n = 10). Blood was sampled at 0, 2, 4, 6, 8, 12, 24, and 72 hours and 1, 2, 4, 8, 12, 16, 20, and 24 weeks (fasting samples at 0, 12, and 24 weeks), and a fasting urine was obtained after diuresis at 0, 12, and 24 weeks. In a 72-hour profile, serum estradiol levels (mean ± SE) were highest at 24 hours (179 ± 20 pg/ml) and fell to 139 ± 16 pg/ml at 72 hours in the pellet group, in the patch group, estradiol levels rose rapidly to 152 ± 33 pg/ml at 4 hours, remained relatively constant over 8 hours, and fell to 46 ± 10 pg/ml at 72 hours. At 1 week, estradiol levels in the pellet group were 113 ± 12 pg/ml and remained relatively constant for 24 weeks. In contrast, estradiol levels in the patch group were 52 ± 11 pg/ml at 1 week and then varied widely until 24 weeks, when the levels were 89 ± 26 pg/ml. The mean estradiol/estrone ratio ranged between 1 and 2.5 in both groups but fluctuated widely in the patch group. Follicle-stimulating hormone was suppressed in both groups; however, the decrement in the pellet group was greater (p < 0.002). There was a significant increase in high-density lipoprotein cholesterol and a decrease in total cholesterol/high-density lipoprotein cholesterol at 12 weeks with the pellet but only at 24 weeks with the patch. The urinary calcium/creatinine ratio was reduced more consistently with the pellet than with the patch. Hot flushes were eliminated in all subjects. (AM J OBSTET GYNECOL 1988;159:1540-6.)
Key words: Estradiol, postmenopausal women, estrogen replacement therapy.
Introduction
Although the oral route is the most common form of estrogen replacement therapy in postmenopausal women, parenteral estrogen replacement therapy offers several theoretic advantages. Perhaps the most important advantage of parenteral over oral estrogen replacement therapy is that the former route avoids the first-pass effect. There is evidence that the hepatic effects of oral estrogen replacement therapy may contribute to complications sometimes associated with oral estrogen replacement therapy, such as hypertension, intravascular clotting, and gallbladder disease.1-3 Parenteral routes of estrogen replacement therapy may avoid these exaggerated hepatic actions and in addition may provide postmenopausal women with an alternative to oral estrogen replacement therapy.
Although several parenteral routes of estrogen re-placement therapy are currently available, there is a paucity of data on estrogen levels achieved by these delivery systems and their effects on gonadotropins and metabolic parameters. The objective of this study was to compare the transdermal and subdermal routes of estrogen administration. These methods are considered the most available and practical routes of estrogen delivery and are generally preferred over intramuscular and vaginal routes. Specifically, we studied the constancy of estrogen delivery and the estrogen effect on follicle-stimulating hormone (FSH), lipids, and the calcium calcium/creatinine ratio.
Methods
The study group consisted of 20 women between 40 and 65 years of age. All the women had undergone total abdominal hysterectomy, and 12 had also undergone bilateral salpingo-oophorectomy. All the subjects were considered postmenopausal on the basis of serum estradiol (Ej) levels < 20 pg/ml and serum FSH levels >40 mlU/ml. The mean (±SD) weights of the subjects in the pellet and patch groups were 148 ± 13 and 136 ± 13 pounds, respectively. Each subject was within 20% of ideal body weight; however, the subjects’ diets were not controlled. All subjects were nonsmokers.
The study subjects were randomized according to a table of random numbers. They received either a transdermal E2 system (Estraderm, CIBA-GEIGY Pharmaceutical Co., Summit, N.J.), which was 4 cm in diameter, contained 8 mg of E2, and delivered 0.1 mg of E2/day,4 or a subdermal Ea system (Progynon Associates, Rosemont, 111.) consisting of two 25 mg crystalline E2 pellets. These systems will be subsequently referred to as patch and pellet, respectively. Ten subjects were in each study group. Pellets were inserted subdermally with a trocar through a small skin incision in the lower abdominal area. The patch was attached to the anterior lower abdominal wall and was changed twice weekly at 3- and 4-day intervals according to the manufacturer’s directions. Each subject in the patch group was instructed to return the used patch before receipt of a new one. Ninety-five percent of the patches were returned.
Both blood and urine samples were obtained from the subjects. Blood was sampled before treatment and 2, 4, 6, 8, 12, 24, and 72 hours and 1, 2, 4, 8, 12, 16, 20, and 24 weeks after treatment was initiated. After the first 72 hours, blood sampling occurred between 8:00 and 10:00 AM in all patients. In patients receiving the patch, blood was obtained before the patch was changed on specified days. Pretreatment and 12- and 24-week specimens were taken after a 12-hour fast. The blood was allowed to clot at 4° C for 1 hour and after centrifugation, the separated serum was stored at — 20° C until analyzed. Urine samples were obtained before treatment and 12 and 24 weeks after treatment started after a 12-hour fast. The subjects were required first to void and then to drink 250 ml of distilled water 2 hours before urine collection.
Estradiol, estrone (E1), FSH, and lipids were measured in the serum samples, and the calcium/creatinine ratio was measured in each urine specimen. E2 was quantitated, which followed extraction with ethyl acetate: hexane (3:2), by means of an iodinated E2 radioimmunoassay kit from Pantex (Santa Monica, Calif.). The lowest E2 concentration that could be measured reliably was 8 pg/ml. Accuracy of the E2 assay was assessed in a recovery experiment in which a known amount of E2, which ranged from 25 to 200 pg, was added to individual 1 ml aliquots of serum in duplicate. Linear regression analysis of the E2 concentration measured (y) versus the E2 concentration added (x) yielded the following equation and correlation coefficient: y = 1.15 x + 16.2, r = 0.998. Assay precision was determined at pooled serum E2 concentrations of 52 pg/ml (low pool) and 119 pg/ml (high pool). The intraassay coefficients of variation (n = 6) were 9.2% and 10.9%, and the interassay coefficients of variation (n = 28) were 17.5% and 9.1% for the low and high pools, respectively. The E2 antiserum cross-reacted 0.36% with E(. E, was measured by radioimmunoassay after diethyl ether extraction and celite column chromatography as described previously.4 FSH was assayed by means of a double-antibody 125I-FSH radioimmu-noassay kit (Diagnostic Products Corporation, Los Angeles, Calif.) in which the calibrators contained 0 to 100 mlU/ml of FSH in World Health Organization second international reference preparation—human menopausal gonadotropin. The lipid profiles and calci- um/creatinine ratios were determined at SmithKline Bio-Science Laboratories (Van Nuys, Calif.). Each lipid profile consisted of total cholesterol, triglycerides, high-density lipoprotein cholesterol, low-density lipo-protein cholesterol, and total cholesterol/high-density lipoprotein cholesterol ratio. Total cholesterol and triglycerides were measured on an Olympus highspeed clinical analyzer with the use of enzymatic and spectrophotometric methods. High-density lipoprotein cholesterol was quantitated spectrophotometrically on an Abbott VP analyzer after phospho tungstic- magnesium chloride precipitation and centrifugation. Low-density lipoprotein cholesterol was calculated as described by Friedwald et al.5 Urinary calcium and creatinine were measured by arsenazo dye and modified Jaffe reaction methods, respectively, and the calcium/creatinine ratio was then calculated.
Although not the primary focus of this study, subjects recorded symptoms weekly. From these diary cards, changes in vasomotor symptoms and reports of adverse effects were monitored.
Longitudinal data were analyzed by the nonpara- metric one-way analysis of variance (Friedman) for significance among the time variates. To determine the significance of difference between the baseline value and the values at different time intervals, the Wilcoxon matched-pairs sign ranks statistic was used. Differences between the two treatment groups were analyzed by the Mann-Whitney U test.
Results
A 72-hour profile of serum E2 was obtained and is shown in Fig. 1. In the pellet group, Ez increased steadily during the first 24 hours after treatment and reached a mean E2 concentration of 179 pg/ml at 24 hours. Peak levels were reached between 24 and 72 hours, and the mean E2 concentration at 72 hours was 139 pg/ml. In the patch group Ea levels increased rapidly and reached a mean concentration of 152 pg/ml 4 hours after treatment. This level remained relatively constant during the next 8 hours but fell to a mean level of 46 pg/ml at 72 hours. In one subject in the patch group, the serum E2 concentration was measured 48 hours after treatment (data not shown). The E2 value at this time was approximately 40% higher than the corresponding 72-hour Ea value.

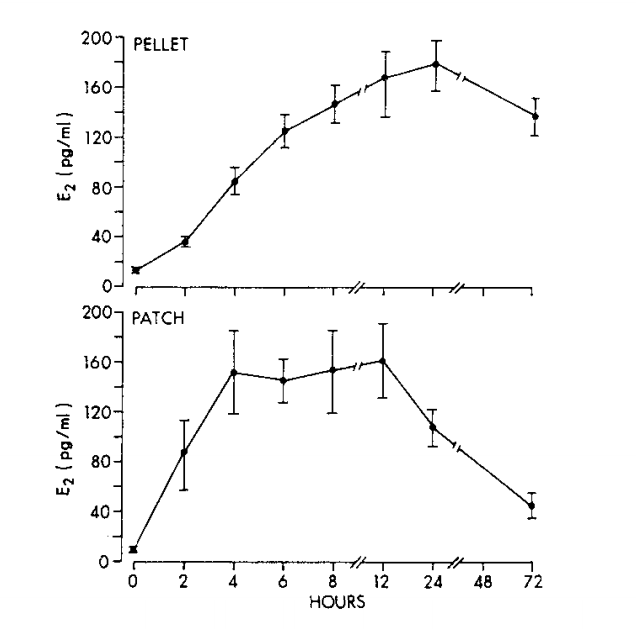

Figure 1. A 72-hour profile of mean (± SE) serum E2 ievels before and during subdermal (pellet) and transdermal (patch) E2 treatment.
The mean serum E2 levels at different intervals from 1 to 24 weeks in the pellet and patch groups are depicted in Fig. 2. One week after treatment began, the Ea concentration in the pellet group averaged 113 pg/ml. This level did not vary significantly during the rest of the study period. Furthermore, in two of the subjects in the pellet group, serum E2 concentrations were measured weekly beyond 24 weeks (data not shown). In each subject the Ea value at 32 weeks was not significantly different from the corresponding value at 24 weeks. In contrast, mean E2 concentrations in the patch group varied widely during the study. The E2 level at 1 week was 46 pg/ml, and this value was approximately doubled at 24 weeks. During this interval, the Ea levels fell below or near 40 pg/ml at three different times (2, 8, and 16 weeks).

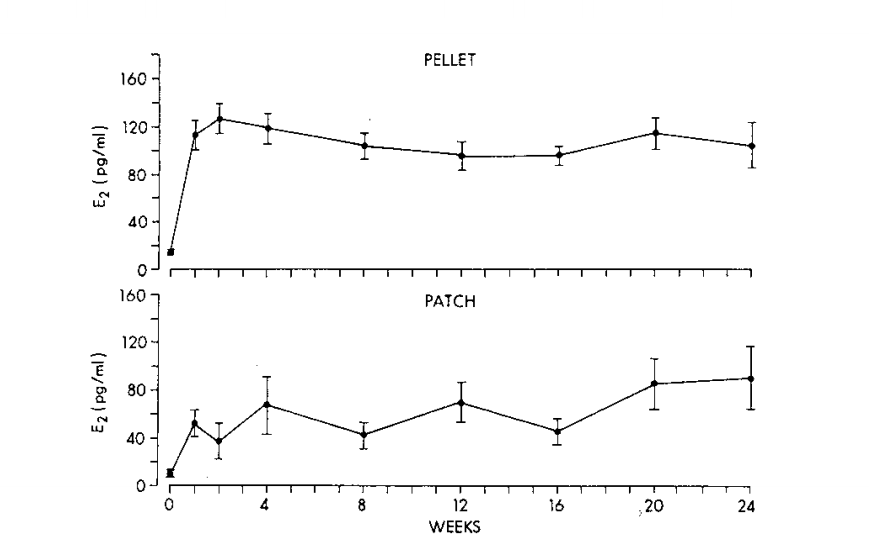

Figure 2. Mean (±SE) serum E2 levels before and during 1 to 24 weeks of subdermal (pellet) and transdermal (patch) E2 treatment.
Variation in E2 levels between the subjects in each treatment group was examined by expressing the mean E2 levels at the different rime intervals from I to 24 weeks as a percentage change from the mean E2 concentration at 72 hours in each group (Fig. 3). In the patch group the mean percentage change ranged from approximately 25% to 225%. In comparison, the percentage change of mean E2 levels in the pellet group was small and remained relatively constant throughout the study.

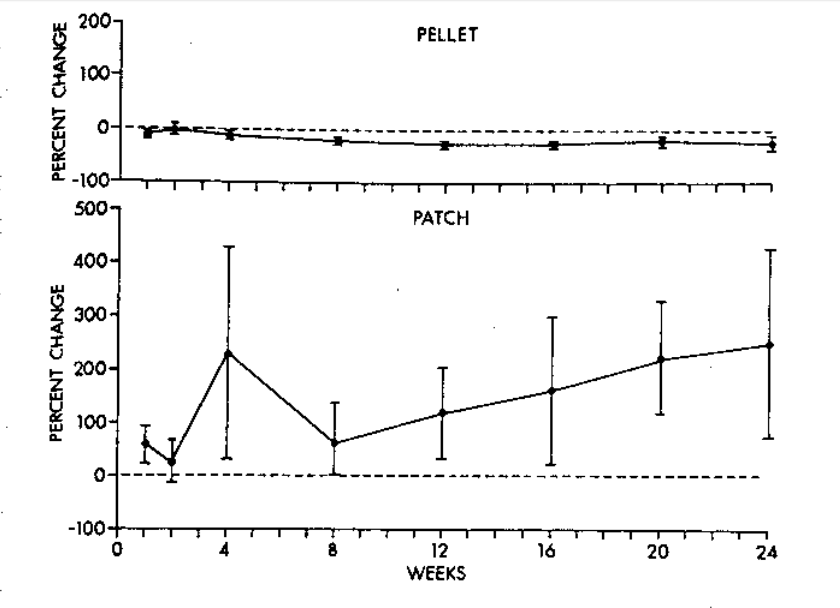

Figure 3. Variation in serum E2 levels during 1 to 24 weeks of subdermal (pellet) and transdermal (patch) E2 treatment. Values at each time interval represent means (±SE) of each woman’s E2 level expressed as percentage change from the mean E2 concentration at 72 hours.
Table I shows the percentage of study subjects with Es values < 20 and 40 pg/ml. In the pellet group no subjects had E2 levels < 40 pg/ml. However, in the patch group 10% to 30% of the subjects had values < 20 pg/ml at five different time intervals, and 20% to 70% had Ea concentrations < 40 pg/ml at all time intervals.

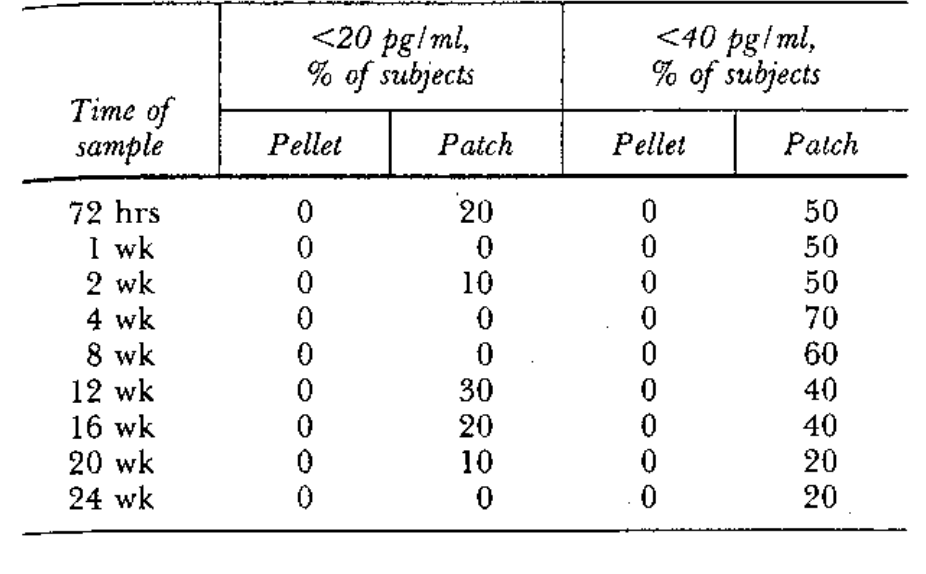

Table I. Percentage of subjects in the pellet and patch groups with serum E2 concentrations < 20 and 40 pg/ml.
We also assessed the percentage of study subjects with E2 values > 150 and 200 pg/ml (Table II). Only a small number of subjects in the patch group had values > 150 pg/ml, whereas 10% to 40% of the subjects in the pellet group exceeded this concentration at every time interval except one. However, only one subject in each treatment group exceeded E2 concentrations >200 pg/ml.

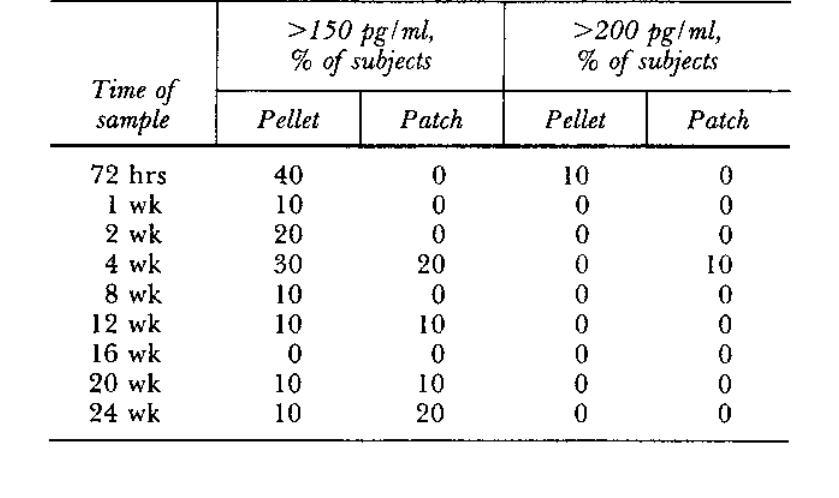

Table II. Percentage of subjects in the pellet and patch groups with serum E2 concentrations > 150 and 200 pg/ml.
Serum E1 concentrations in the pellet and patch groups were compared over a 16-week period (data not depicted). In the pellet group, E1 levels averaged 83 pg/ml after 1 week of treatment, and this level was maintained with little fluctuation. In the patch group the mean E1 level at I week of the study was 32 pg/ml, and this value increased gradually during the study until the sixteenth week, at which time the level had doubled. The mean E2/E1 ratio was calculated for the different time intervals from 1 to 16 weeks in each treatment group and ranged between 1 and 2.5 (Fig. 4). The ratio was relatively constant in the pellet group when compared with that of the patch group.

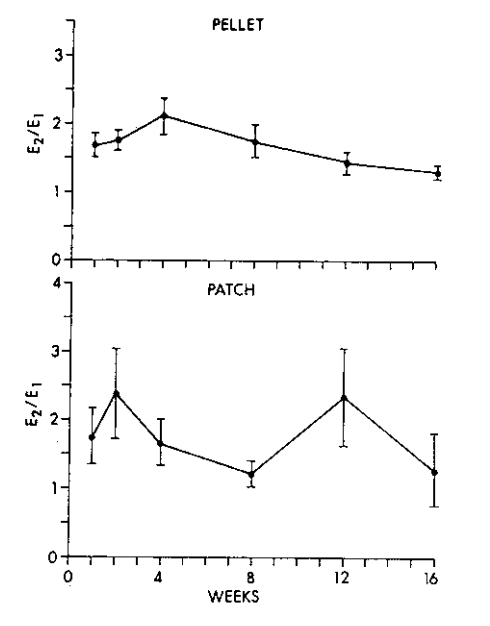

Figure 4. Mean (±SE) serum estradiol E2/E1 ratios during 1 to 16 weeks of subdermal (pellet) and transdermal (patch) E2 treatment.
Mean serum FSH levels measured at different time intervals in the two treatment groups are shown in Fig. 5. In the pellet group FSH was significantly (p < 0.05) suppressed from baseline values at every time interval, whereas in the patch group there was a significant decrease in FSH at 4, 8, 12, 20, and 24 weeks. The greatest suppression of FSH in both groups was at 12 weeks. Comparison of the percentage change from baseline between the two groups at 12 weeks showed a significantly greater (p < 0.002) change in the pellet group.

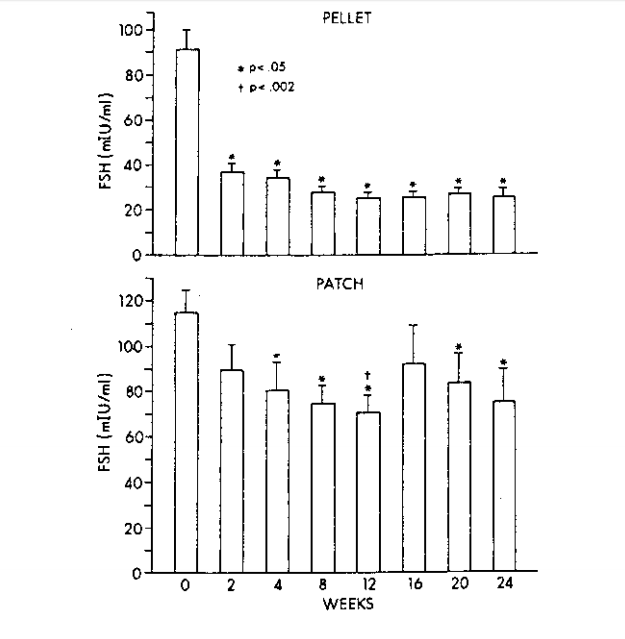

Figure 5. Mean (±SE) serum FSH levels before and during 1 to 24 weeks of subdermal (pellet) and transdermal (patch) E2 treatment. The significance of difference in the comparison of FSH values at different time intervals with the baseline value is represented as *p < 0,05. The significance of difference between the two treatment groups is represented as †p < 0.002.
Total cholesterol and triglycerides (data not depicted) did not change significantly in either treatment group. In the pellet group, high-density lipoprotein cholesterol increased significantly (p < 0.05) from baseline at 12 and 24 weeks of the study, whereas in the patch group, high-density lipoprotein cholesterol also increased but was significantly greater (p < 0.03) from baseline only at 24 weeks (Fig. 6). There was no significant difference from baseline in low-density lipoprotein cholesterol levels in either treatment group (Fig. 6), Comparison of the total cholesterol/high- density lipoprotein cholesterol ratios (Fig. 7) showed a significant {p < 0.01) decrease from baseline at 12 and 24 weeks in the pellet group. In the patch group the ratios decreased from baseline at both time intervals but the difference was significant (p < 0.03) only at the 24-week interval.

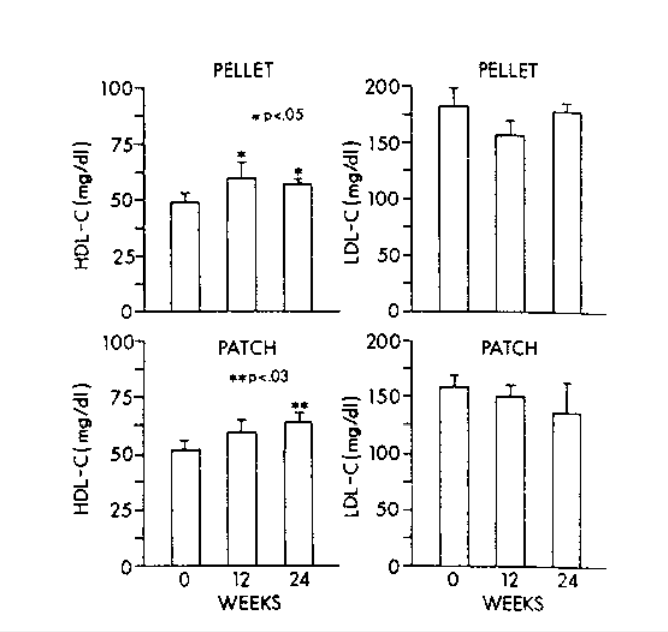

Figure 6. Mean (± SE) serum high-density lipoprotein- cholesterol (HDL-C) levels before and during 12 and 24 weeks of subdermal (pellet) and transdermal (patch) E2 treatment. The significance of difference in the comparison of HDL-C values at 12 and 24 weeks with the baseline value is represented as *p < 0.05 and **p < 0.03.

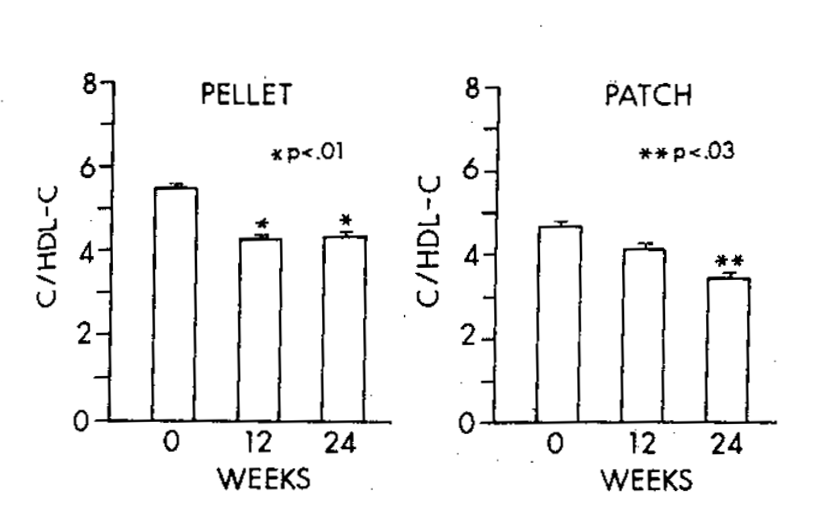

Figure 7. Mean (±SE) serum total cholesterol (C)/high-density lipoprotein cholesterol (HDL-C) ratio before and during 12 and 24 weeks of subdermal (pellet) and transdermal (patch) E, treatment. The significance of difference in the comparison of the C/HDL-C ratios at 12 and 24 weeks with the baseline value is represented as *p < 0.01 and **p < 0.03.
A reduction in urinary calcium/creatinine ratios (Fig. 8) from baseline occurred at both 12 and 24 weeks in the pellet and patch groups. However, these reductions were significant (p < 0.01) only in the pellet group.

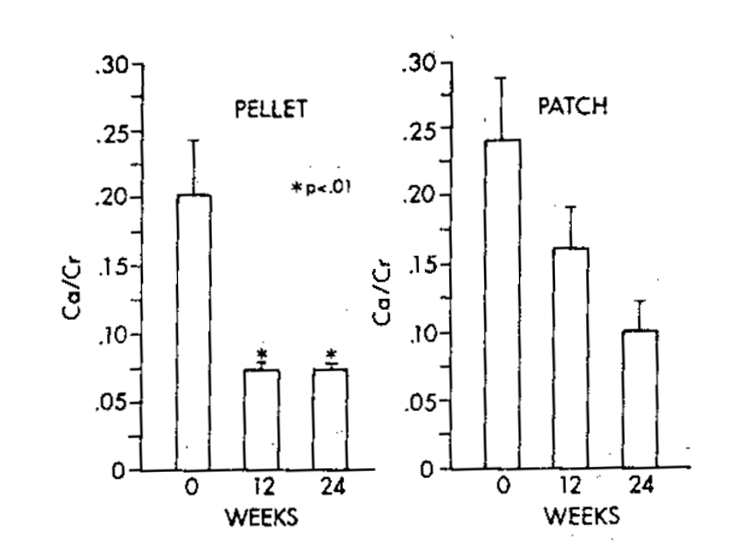

Figure 8. Mean (±SE) urinary calcium (Ca)/creatinine (Cr) ratio before and during 12 and 24 weeks of subdermal (pellet) and transdermal (patch) Ea treatment. The significance of difference in the comparison of the urinary Ca/Cr ratios at i2 and 24 weeks with the baseline value is represented as *p < 0.01.
All subjects in our study had elimination of hot flushes; however, most subjects complained about local reactions caused by the E2 delivery systems. In the pellet group seven subjects complained of breast tenderness; especially around the areolar area. Two of the subjects had moderate to severe reactions and the rest had mild reactions. In the patch group, one subject complained about moderate to severe breast tenderness, and four other subjects had mild reactions. The duration of the complaints ranged from 8 to 24 weeks. None of the subjects in the pellet group complained of problems at the incision site. In the patch group, nine patients had a transient local skin reaction, and this effect persisted for a longer time in one subject, who also experienced some skin discoloration.
Comment
In this study we compared subdermal and transdermal routes of estrogen administration. It has been previously shown that the subdermal Es pellet offers many practical and theoretic advantages over other forms of estrogen replacement therapy.6,7 We reported that a single 25 mg E2 subdermal pellet gives serum E» con- centrations in the range of 40 to 70 pg/ml ovei a 6-month period. To achieve higher serum E3 levels m the present study, we administered two 25 mg pellets subdermally in each subject in the pellet group. The mean E2 levels attained in these subjects ranged be tween 95 and 126 pg/ml (Fig. 2), The patch gioup used the 0.1 mg E2 transdermal system. Although patches are available commercially in two doses, 0.05 and 0.1 mg of E2J the former dose results in E2 levels that are closer to the single 25 mg pellet.6,8
Our data clearly show that the pellet provides a more reproducible estrogen delivery system than the patch. The serum E2 levels of each subject in the pellet group were relatively constant throughout the study, whereas the E2 values for each subject in the patch group varied widely. The fluctuation in E2 levels in the patch group may be related to inherent properties of the patch or compliance issues. One inherent property of the patch is that its release of E2 gives rise to a peak and nadir of E2 levels over a 72-hour period (Fig. 1), which is similar to that observed during a 24-hour period after oral ingestion of an E2 preparation. Furthermore, lack of patient compliance in following the manufacturer's directions in using the patch can result in altered profiles of E2 levels such as the ones observed in this study (Figs. 2 and 3). Although the subjects in the present study were encouraged to comply with the experimental protocol, our data suggest that there could have been a tack of compliance by subjects in the patch group.
Suppression of serum FSH levels was observed in both the pellet and patch groups. However, the FSH decrement was greater in the pellet group, presumably because of the higher E2 concentrations and less fluctuations of these levels in this group. The FSH values tn the pellet group were lower than the values obtained ln our previous study in which a single, pellet was implanted subdermally in women who underwent hysterectomy and bilateral salpingo-oophorectomy.6 The lower FSH levels were expected since higher serum E2 concentrations were attained in the present study. With Aspect to the FSH levels in the patch group, our results are in agreement with those of other investigators,8-11 albeit the degree of suppression varied with the E2 dose of the patch.
Although total cholesterol and triglycerides did not change significantly in either treatment group, there was a significant increase in high-density lipoprotein cholesterol and a decrease in the total cholesterol/high- density lipoprotein cholesterol ratio by 12 weeks of the study in the pellet group but only at 24 weeks in the patch group. Very few studies have found changes in high-density lipoprotein cholesterol with parenteral forms of estrogen. The estrogen effect on lipoproteins may occur only after sufficient estrogen is delivered over a prolonged time, such as 6 months. Although patients wearing a patch had fluctuating levels of E2, which were extremely low at times, the finding of an increase in high-density lipoprotein cholesterol at 6 months is novel and important. Nevertheless, larger numbers of subjects and more sophisticated lipoprotein determinations are needed to confirm these data.
Although there was a reduction in the fasting urinary calcium/creatinine ratio at 12 and 24 weeks in the patch group, our data show a more consistent reduction of this ratio in the pellet group. However, the calcium/creatinine ratio is a relatively crude marker of bone turnover and merely provides a guide for the effects of estrogen on bone.
All subjects in our study had elimination of hot flushes. Although differences in the frequency and severity of the flushes were not analyzed, the benefits of the pellet and patch with respect to suppression of hot flushes appear to be comparable.
Our data show that over 24 weeks, the pellet offers a more reproducible estrogen delivery and greater estrogen effect. These advantages of the pellet over the patch may be related to inherent properties of the patch or issues of patient compliance. In our study group dermatologic complaints were fairly common. However, there was no difference in serum Ea levels between patients having and not having such complaints.
References
Crane MG, Harris JJ, Winsor W III. Hypertension, oral contraceptive agents and conjugated estrogens. Ann Intern Med 1971; 74:13.
Boston Collaborative Drug Surveillance Program. Boston University Medical Center. Surgically confirmed gallbladder disease, venous thromboembolism, and breast tumors in relation to postmenopausal estrogen therapy. N Engl J Med 1974;290:15.
Stadel BV, Oral contraceptives and cardiovascular disease. N Engl J Med 1981;305:612.
Goebelsmann U, Bernstein GS, Gale JA, et al. Serum go-nadotropin, testosterone, estradiol and estrone levels prior to and following bilateral vasectomy. In: Lepow IH, Crozier R, eds. Vasectomy: immunologic and pathophysiologic effects in animals and man. New York: Academic Press, 1979:165.
Friedwald WT, Levy RI, Frederickson, DS. Estimation of concentration of low-density lipoprotein cholesterol out use of the preparative ultracentrifuge. Clin Cliem 1972:18:499.
Lobo RA, March CM, Goebelsmann U, Krauss RM, Misbell DR Jr. Subdermal estradiol pellets following hyster-ectomy and oophorectomy. AM J OBSTET GYNECOL 1980- 138:714.
Notelovitz M, Johnston M, Smith S, Kitchens C. Metabolic and hormonal effects of 25-mg and 50-mg 17ß-estradiol implants in surgically menopausal women. Obstet Gynecol 1987:70:749.
Chetkowski RJ, Meldrum DR, Steingold KA, et al. Biologic effects of transdermal estradiol. N Engl MrH 1986;3I1:1615.
Läufer LH, DeFazioJL, Lu JKH, et al. Estrogen replacement therapy by transdermai estradiol administration. AM J OBSTET GYNECOL 1983; 146:533.
Powers MS, Schenkel L, Darley PE, Good WR, Balestra JC, Place VA. Pharmacokinetics and pharmacodynamics of transdermal dosage forms of 17ß-estradiol: comparison with conventional oral estrogens used for hormone replacement. AMJ OBSTET GYNECOL 1985:152:1099.
Padwick ML, Endacott MBJ, Whitehead Ml. Efficacy, ac-ceptability and metabolic effect of transdermal estradiol in the management of postmenopausal women. AMJ OBSTET GYNECOL 1985:152:1085.
