DAVID J. HANDELSMAN, ANN J. CONWAY, AND LYN M. BOYLAN
Andrology Unit, Royal Prince Alfred Hospital and Departments of Obstetrics and Gynecology and of Medicine (D.J.H.) University of Sydney, Sydney 2006, Australia.
Address correspondence and requests for reprints to: Associate Prof. D. J. Handelsman, Department of Obstetrics and Gynecology, Univer-sity of Sydney, Sydney NSW 2006, Australia.
This study was supported by the Wellcome Trust (to D.J.H.) and Organon, Sydney, Australia Pty Ltd, This work has been presented in part at the 4th International Congress of Andrology, Florence, May 1989 and 32nd Annual Scientific Meeting of the Endocrine Society of Australia, Melbourne, September 1989.
Abstract
We studied the pharmacokinetics and pharmacodynamics of sc implanted pellets of fused crystalline testosterone. Three different regimens (6 x 100 mg, 6 X 200 mg; and 3 x 200 mg) were compared in a prospective, cross-over clinical trial in which androgen deficient men were administered the three-dose combinations in a randomized starting order at intervals of at least 6 months. Plasma free and total testosterone, sex hormone-binding globulin, LH, and FSH were measured before and at monthly intervals for at least 6 months after 111 pellet implantation in 43 men with hypergonadotropic (n = 22) or hypogonadotropic (n = 21) hypogonadism. Total and free testosterone levels peaked at the first month and were maintained at physiological levels for 4 to 5 (600 mg doses) or 6 (1200 mg dose) months after a single implantation. Absorption of testosterone from 100 mg and 200 mg pellets closely approximated zero-order throughout the effective life of the pellets and exhibited a half-duration of 2.5 months. The estimated rate of release of testosterone was 1.5 (95% confidence limits 1.3-1.6) mg/day • 200 mg pellet as determined from direct measurement of residue in pellets recovered after extrusion and confirmed independently from percent absorbed-time plots. The bioavailability of testosterone was virtually complete and the time course was predictable from the total implant dose and, to a lesser extent, total initial surface areas of pellets. Despite wide fluctuations in testosterone, SHBG levels were not changed during 6 months. In men with hypergonadotropic hypogonadism, both LH and FSH levels were uniformly and markedly suppressed by increased testosterone after pellet implants. LH and FSH were highly correlated with each other (r = 0.87) and inversely with total (r = 0.47 and 0.45, respectively) and free (r = 0.46 and 0.47) testosterone levels. Nadir LH levels occurred at 1-3 months (600 mg) and 1-4 months (1200 mg) reaching levels comparable with eugonadal controls. In contrast nadir FSH levels occurred at similar times but remained elevated compared with eugonadal controls. We conclude that fused pellets of crystalline testosterone provides very satisfactory depot androgen replacement exhibiting many desirable features for androgen replacement. (J Clin Endocrinol Metab 71:216-222, 1990)
TESTOSTERONE has been used for androgen re-placement therapy since the 1930s in a wide variety of pharmaceutical formulations (1). The poor oral bio- availability (2) and short duration of action after paren-teral administration (3) have dictated the need for a depot formulation of testosterone for androgen replace-ment therapy. Among the first such depot formulations was the subdermal implants of crystalline testosterone (4) however their clinical application in androgen re-placement therapy has been neglected (5, 6) and detailed pharmacological studies of this modality of testosterone administration are almost totally lacking. The aim of this study was therefore to define the pharmacodynamics and pharmacokinetics of subcutaneous pellets of fused crystalline testosterone in androgen-deficient men. Specifically we studied variations in the time course of total and free T, LH, FSH, and SHBG levels achieved by variations in pellet testosterone dose where the total dose and number of pellets are controlled.
Materials and methods
Study design
Hypogonadal men attending the Andrology Unit, Royl Prince Alfred Hospital previously treated with parenteral testosterone esters for androgen replacement therapy and having no other chronic medical illness were enrolled in the study. The study design was a cross-over clinical trial with 3 treatment phases separated by intervening washout periods. The 3 treatment regimens used the two available pellet sizes (100 mg, 200 mg) in combinations of either 6 x 100 mg, 3 X 200 mg, or 6 X 200 mg. This compared the total pellet doses of 600 mg and 1200 mg while also providing contrasts that controlled the tota dose (6 X 100 mg us. 3 x 200 mg) or the total number of pellet; (6 x 100 mg vs. 6 X 200 mg). After at least 1 month from the last injection of testosterone esters, hypogonadal men were assigned to 1 of the 3 testosterone pellet doses at random. Subsequently at intervals of not less than 6 months when the testosterone levels had returned to hypogonadal levels, men crossed - over to another regimens until they had completed the 3 different doses. At the time of data analysis not all men had completed each of the 3 pellet regimens. If they became symptomatic of androgen deficiency before 6 months after implantation, they were treated with testosterone ester injections until at least 6 months had elapsed before they underwent the next pellet implant procedure. Blood samples were obtained immediately before pellet implantation and at 4-week intervals there-after. Eugonadal controls were 335 healthy age-matched men undergoing screening as potential sperm donors (7).
Pellets
The testosterone pellets [Organon (Sydney, Australia) Pty Ltd] are formed by fusion of crystalline testosterone at elevated temperature. The two sizes have a common cylindrical shape with a diameter of 4.5 mm and lengths of 6 mm (100 mg) and 12 mh1 (200 mg) with total initial surface areas of 117 mm2 noO mg) and 202 mm2 (200 mg) per pellet. Pellets are implanted into the lower abdominal wall in the periumbilical region under routine sterile conditions for minor surgery. After injection of local anesthetic (5-10 ml 2% xylocaine), a small incision (0.5- 10 cm) is made with a scalpel at least 5 cm from the mid-line at about the level of the umbilicus to permit entry of the trocar (7.5 French gauge, 5 mm ID, 7 cm length). Pellets are distributed in individual, angled tracks which fan out from the single puncture site and the pellets are discharged from the trocar by an obturator at a distance of 5-10 cm from the puncture site. After completion of insertion, the puncture wound is closed without suture by using adhesive strips and covered with a simple dressing which is changed daily for a week. Due to the rarity of infections, antibiotics were not prescribed routinely after implantations.
Assays
Hormones (LH, FSH, total testosterone) were measured by RIAs and free testosterone by centrifugal ultrafiltration (Ami- con, Melbourne, Australia) as described previously (7-9). SHBG was measured by a solid phase commercial RIA (Farmos Diagnostica, 90460, Oulunsalo, Finland). LH and FSH levels were expressed in terms of international units per L of the World Health Organization standards (LH 68/40; FSH 69/ 104). Within and between assay coefficients of variation were less than 10% for all assays.
Rate of testosterone absorption
The rate of absorption of testosterone from the implanted pellets was calculated from percent absorbed-time plots for total and free testosterone. In addition whenever possible extruded pellets were collected from patients noting the date of extrusion.
Data analysis
All data was stored in a customized SIR/DBMS database (10) and analyzed using appropriate BMDP statistical programs (11) on a VAX computer network. Between-subject variations in baseline endogenous testosterone were removed by analyzing the increments from the subjects own baseline testosterone. The time course of hormonal data was analyzed as a factorial design with treatment (pellet dose) and time being main effects. This analytic approach was necessary due to incompleteness of data and the lack of a fully crossed design making a repeated measures analysis of variation analysis impracticable. The magnitude and highly consistent time course of hormone levels made the within-subject variance so much greater than the between-subject variance that neglecting the serial dependence over time would have a negligible effect on the analysis. Results were also analyzed by suitable linear contrasts, correlation, linear regression, unpaired t test, and analysis of covariance as required. Exact P values of hypothesis tests are provided and results are expressed as mean and its SE.
Clinical features
The clinical features of the hypogonadal men and eugonadal controls are listed in Table 1. Hypogonadal men had smaller testis size, lower testosterone, and in-creased gonadotropin levels compared with eugonadal controls. Since age, anthropometric measures [height, weight, body surface area (BSA), standardized body weight (SBW)], total and free testosterone, and sex hormone binding globulin (SHBG) were comparable in men with primary and secondary hypogonadism, their results were pooled for all analyses of testosterone and SHBG. The time course of suppression of elevated LH and FSH levels was only analysed in the men with primary (hypergonadotropic) hypogonadism. The men entering each of the three treatment regimens were comparable in all hormonal and anthropometric measures (data not shown).

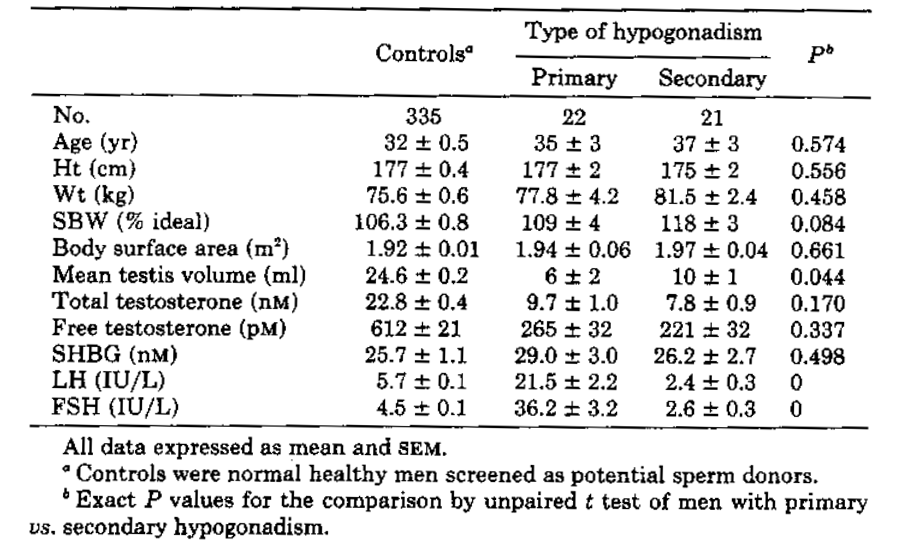

Table 1. Clinical features of hypogonadal men.
Forty three men with primary (hypergonadotropic, n = 22) or secondary (hypogonadotropic, n = 21) hypogon-adism were studied over a total of 111 pellet implanta-tions (6 x 100 mg—28 implants; 6 x 200 mg-32 implants; 3 X 200 mg—51 implants). The proportions of men with primary and secondary hypogonadism were similar in all three pellet regimens. Maintenance of libido, potency, and well being was very consistent on all three androgen replacement regimens for 4-5 months on the 600 mg doses and for 6 months on the 1200-mg dose combination. Most men (30/43) expressed a preference to continue using testosterone pellets for androgen replacement. They regarded the lack of wide swings in androgen effects and the wider spacing between treatments as most desirable compared with other available testosterone formulations (6). The remainder expressed preferences for parenteral testosterone ester injections or no preferences.
Pharmacokinetics—total and free testosterone
All three pellet regimens gave highly predictable time- courses for total and free testosterone levels with a clear dose-response relationship between pellet dose and plasma testosterone levels (Fig. 1). Plasma testosterone levels peaked at the first month and gradually declined to return to baseline by 6 months after the two 600 mg dose regimens but remained significantly elevated after 6 months following the 1200 mg dose. The 1200-m regimen produced higher total testosterone levels than the two 600-mg regimens (F — 137.8, P < 0.0001 for contrast on dose) while the two 600-mg regimens gave similar time course for plasma total testosterone (F - 0.4, P = 0.95).

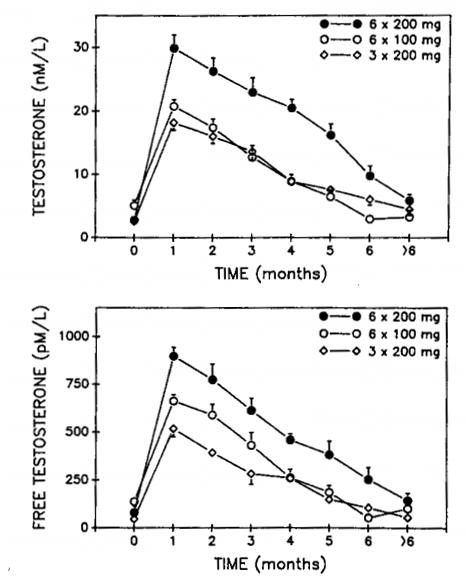

Figure 1. Time course of total (upper panel) and free (lower panel) testosterone levels after implantation of the 3 pellet regimens in 43 hypogonadal men. Data are expressed as mean and SE of mean above the subjects own baseline testosterone level.
Plasma free testosterone was highly correlated with total testosterone (r — 0.90) and therefore free testoster-one levels exhibited a very similar time course to total testosterone. The one exception was that free testoster-one levels were significantly higher in the first (but not the second) 3 months after the 6 X 100-mg regimen compared with the 3 x 200-mg regimen. Plasma total testosterone was not correlated with either age or phy-sique (P > 0.15) but plasma free T was inversely corre-lated weakly with BSA (r = —0.09, P = 0.06), and SBW (r = —0.13, P ~ 0.004) but not age (P >0.5).
Plasma SHBG (Fig. 2) did not vary significantly be-tween pellet regimens (P = 0.87) or over time (P = 0.18). SHBG was moderately correlated with both age (r = 0.44), BSA (r = 0.40), and SBW (r = 0.25, all P < 0.001).

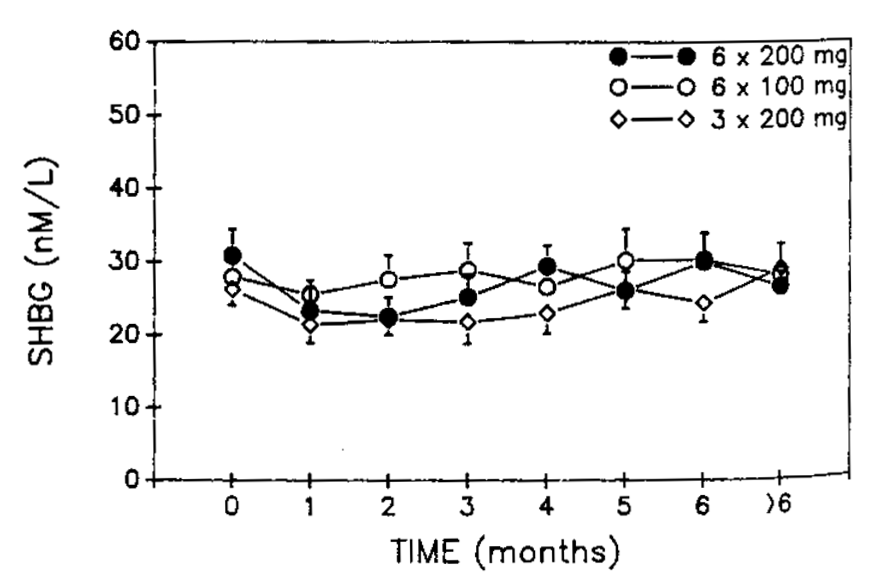

Figure 2. Time course of SHBG levels after implantation of the 3 pellet regimens in 43 hypogonadal men. Data are expressed as mean and SE of mean.
Pharmacokinetics—absorption kinetics
Net testosterone release (area-under-curve of testos-terone vs. time plot) was highly correlated with pellet dose (r = 0.999) with the 1200 mg dose (130.1 arbitrary units) giving very close to twice that of either 600 mg combination (6 X 100 mg—73.5 U; 3 X 200 mg—73.9 U). Net testosterone release also correlated with total initial surface area of the pellets (r = 0.988). The net bioavail- able free testosterone was also highly correlated with both total pellet T dose (6 X 200 mg—3493 TJ; 6 X 100 mg-2305 TJ; 3 x 200 mg—1757 U; r = 0.951) however the correlation with initial pellet surface area (r — 0.986) was stronger. Assuming a constant testosterone MCR of 540 l/m2-day (12) and using the AUC data and mean body surface area of our subjects, the average net release of testosterone was calculated to be 1100 mg from the 1200- mg dose and 645 mg from the 600-mg doses after 6 months.
Rates of absorption of testosterone from the pellets were estimated from percent absorbed-time plots (Fig. 3) These indicated a nearly linear zero-order) release of testosterone over months that was not influenced by the size or number of pellets. An almost identical pattern was also observed for free testosterone (data not shown). The estimated half-time of absorption was approxi-mately 2.5 months and the rate of testosterone release was 1.3 mg/day for the 200 mg pellet and 0.65 mg/day for the 100 mg pellet.

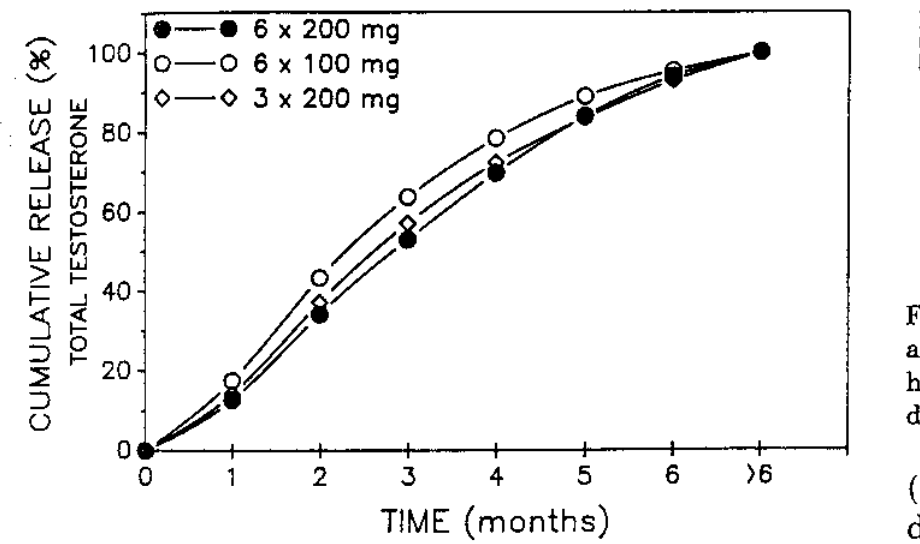

Figure 3. Percent absorbed-time plot for testosterone from the three combinations of pellets. Note the nearly linear rate of release consistent with 0 order release.
An independent estimate of rate of absorption was obtained from pellets recovered after extrusion. The remnants of six 200 mg pellets were recovered after extrusion at different times after implantation and the net release of testosterone was calculated by comparison with nonimplanted 200-mg pellets (Fig. 4). The esti-mated rate of release was linear with time up to 92 days (r = 0.993) and provided an estimate of 1.5 (95% confi-dence limits 1.4—1.7) mg/day-200 mg pellet. The ex-truded pellets retained the original cylindrical shape although the one longest in situ (92 days) disintegrated into fragments on handling.

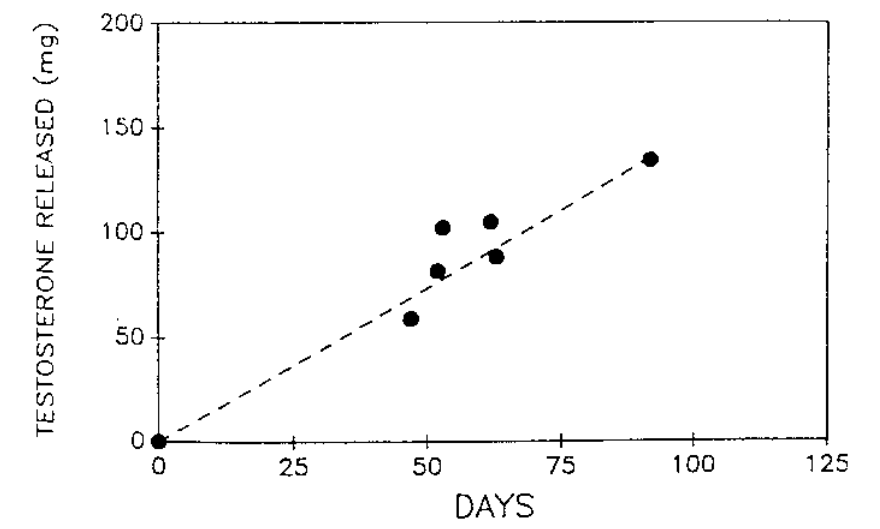

Figure 4. Amount of testosterone released from 200-mg pellets which were extruded at various times after implantation. Estimated release rate of testosterone is 1.5 mg/day · pellet. For further details see text.
Pharmacodynamics-LH and FSH
Both plasma LH and FSH (Fig. 5) levels were mark-edly suppressed by all three regimens in men with pri-mary (hypergonadotropic) hypogonadism with a marked dose dependency as the 1200-mg regimen produced significantly greater and more sustained suppression of LH and FSH than the two 600-mg regimens (linear contrast F = 16.1, P < 0.001 (LH); F = 12.1, P < 0.001 (FSH)]. The two 600-mg regimens produced similar time courses for plasma LH (F = 1.0, P = 0.32) and FSH (F = 0.01, P = 0.93) levels. The 600-mg dose regimens produced nadir LH levels between 1 and 3 months with a significant increase by 4 months and return to baseline at 5 months. In contrast the 1200-mg dose produced nadir LH levels between 1 and 4 months with return to baseline only at 6 months. Nadir LH levels achieved were comparable with eugonadal control on the 1200-mg dose but remained elevated with both 600-mg dose combinations.

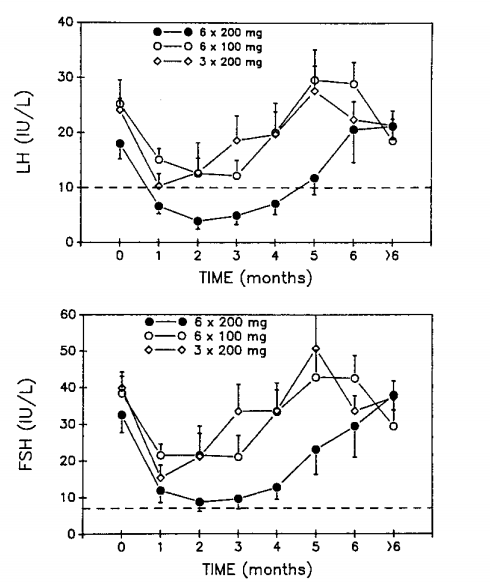

Figure 5. Time course of LH (upperpanel) and FSH (lowerpanel) levels after implantation of the 3 pellet regimens in 22 hypergonadotropic hypogonadal men. Data are expressed as mean and SE of mean. The dotted line indicates the upper limit of normal for eugonadal men.
Similar effects were also observed for suppression of FSH levels. Both 600-mg dose regimens produced nadir FSH levels between 1 and 2 months but after 3 months the effects of the 6 X 100-mg combination (with the higher initial surface area) were sustained longer than the 3 x 200-mg dose which had returned to baseline by 3 months. In contrast the 1200-mg dose induced sustained FSH suppression with return to baseline levels only after 6 months. Nadir FSH levels remained elevated in all three treatment regimens compared with eugonadal controls. The generally parallel suppression of LH and FSH was consistent with their overall high correlation (r = 0.87 for quadratic regression) with each other. Plasma LH and FSH were also each inversely correlated with total [r = 0.47 (LH), 0.45 (FSH)] and free [r = 0.46 (LH), 0.47 (FSH)] testosterone.
Side effects
Pellet implantation had few side effects. Three in-stances of mild bleeding controlled by topical pressure occurred within 2-3 h after pellet implantation and an-other of a hematoma causing discomfort was observed within a few days after implantation. There were 11 extrusions of at least 1 pellet and 4 episodes of infection after 111 implants. Most (6/11) extrusion episodes in-volved the loss of only one pellet and the greatest number of pellets extruded was 3/6 pellets. The frequency of pellet extrusion was related to operator skill since the frequency fell from an incidence of 40% of an extrusion episode after the first 15 procedures to 5% in the later 96 implants. Extrusions were significant more frequent after implantation of 6 X 100-mg pellets (25% vs. 5%, P = 0.008) and after implantation of 100-mg pellets (8.9% vs. 1.4%, P — 0.0001) but were unrelated to whether three or six pellets were implanted (P — 0.22). These findings probably reflected a temporal trend in operator experience since the 6 x 100-mg pellets was the earliest employed. Infections followed a pellet extrusion and all abated quickly during administration of broad-spectrum antibiotics. Palpable fibrosis at the sites of past pellet implantation was observed in a few subjects but these incidental observations were unaccompanied by any complications relating to subsequent pellet implantation or absorption. In up to 5 yr of use there have been no subjects with sufficient scarring to interfere with any further implants.
Discussion
This study reports the first detailed pharmacokinetic and pharmacodynamic study of testosterone pellets in hypogonadal men. Despite the clinical use of testosterone pellets for 50 yr (4), pharmacological data has been remarkably sparse (5, 6) and the dose and duration characteristics of this formulation has not been described systematically. Authoritative reviews of androgen replacement therapy have described implants as having “virtually no clinical utility” (13) or have omitted or barely mentioned this modality (1, 14, 15). The dearth of pharmacological information may explain the relatively limited clinical use of a highly effective depot form of testosterone replacement therapy.
The rate of absorption of testosterone from the pellets appears to provide a very good approximation to zero- order release. This is supported by the near-linear per-cent absorbed-time plots and, independently, by direct measurements of absorption from pellets retrieved after extrusion which gave linear absorption for up to 92 days after implantation. This remarkably good approximation to zero-order release obtained with the simply formulated fused crystalline steroid pellets appears to be characteristic of a variety of crystalline steroid depots (16-18), The rate of testosterone release calculated by two independent methods gave estimates in close agreement. The direct estimate of the testosterone release rate was 1.5 mg/day for the 200-mg pellet (0.75%/day) and, in view of the identical percent absorbed-time plots, half that for the 100-mg pellets. The only comparable direct estimate of testosterone release rates from fused pellets (16) was 1.1 mg/day • 100-mg pellet when implanted in the ante- cubital or subscapular regions. The pellets in the present study implanted in the anterior abdominal wall gave a 41% lower release rate despite a 66% greater initial surface area. This discrepancy may reflect an important site-specific difference in testosterone absorption rates. The mechanism of steroid absorption from fused pellets appears to be a uniform-erosion mechanism involving the gradual dissolution of a crystalline steroid of sparing solubility into the extracellular fluid (16-18). Our obser-vation of higher free testosterone and more sustained gonadotropin suppression levels during the first (but not the second) 3 months after the 600-mg regimen with the greater initial surface area (6 x 100 mg) does support the importance of pellet geometry in limiting the testoster-one release rate. The potential effects of the site of implantation and variations in its blood flow remain speculative at present.
It should be noted that these fused pellets are quite different from the original subdermal implants made by high pressure compression into a tablet-like form of testosterone with excipient (usually cholesterol) which undergo much greater encapsulation and fibrosis than is observed with the fused pellets (16). The lesser degree of fibrosis produced by the fused pellets compared with the older compressed pellets may be responsible for the lower frequency of fibrosis but conversely may also be related to the higher rates of extrusion due to the weaker anchoring of pellets in their tracks. Minor palpable fibrosis, due to foreign body tissue reaction (5), observed at im- olant sites of some men may persist after the complete dissolution of the fused pellets and does not necessarily indicate residual unabsorbed steroid.
All three pellet regimens caused no change in immu- noreactive SHBG levels in contrast with parenteral tes-tosterone esters and oral testosterone undecanoate which markedly lower SHBG levels (6). This is consistent with the postulate (6, 19) that decreases in SHBG levels are a manifestation of excessive or toxic androgen effects on the liver rather than a physiological effect of androgens (20). Since SHBG is a major determinant of testosterone metabolic clearance rate {21, 22), the invariance of SHBG levels following testosterone pellet implants supports the validity of the assumptions about the constancy of testosterone MCRs assumed in the calculations of bioavailability and indirect estimates of testosterone release rates.
The suppressive effects of the pellets on elevated LH and FSH levels was dose dependent and mirrored closely the time course of testosterone absorption. The strong inverse correlation of testosterone with gonadotropin suppression in men with primary hypogonadism is consistent with the observation that the duration of gonadotropin suppression after pellet implantation reflects accurately the maintenance of physiological testosterone levels. The observation that nadir LH levels were suppressed into or just above the eugonadal range whereas FSH levels remained elevated is consistent with the role of nonsteroidal gonadal factors such as inhibin in regulating FSH preferentially. Thus gonadotropin suppression in men with primary hypogonadism can augment clinical monitoring of androgenic effects after testosterone pellet implantation.
Testosterone ester injections administered in an oily vehicle remains the most widely used testosterone for-mulation for androgen replacement therapy in clinical practice (1, 14, 15). Comparative clinical trials have demonstrated however that the durability and stability of androgenic effects after testosterone pellet implants are much preferable by patients who have experienced the alternatives (5, 6). Given the calculated testosterone release rates it is possible with various pellet combina-tions to readily produce daily testosterone release rates of 0.75-9 mg/day in increments of 0.75 mg/day using the two available pellet sizes. Thus the normal testosterone production rate of 3-9 mg/day (12) can be reproduced by a single implant of two to six pellets (400-1200 mg) which will last for between 4 and 6 months. The only drawbacks of testosterone pellet implants in androgen replacement therapy are the requirement for minor sur-gical skill in using a trocar and cannula for the implan-tation and the low but unavoidable rate of pellet extrusion.
The implantation of testosterone pellets produce reproducible and dose-dependent time course for circu-lating total and free testosterone lasting for 4-5 months after a single implant of the 600-mg dose combinations and 6 months for the 1200-mg dose. The pellets provide a flexible dosage form with smooth, physiological, and sustained androgenic effects as manifested by marked gonadotropin suppression and yet negligible effects on SHBG levels. Testosterone pellets represent a highly effective but curiously forgotten form of testosterone therapy.
Acknowledgements
The authors are grateful for the assistance of Mr. Paul Mutton of Organon (Australia) Pty Ltd. and the staff of the Endocrinology laboratory for their expert help in performing the assays.
References
Wilson JD, Griffin JE. The use and misuse of androgens. Metabolism. 1980;29:1278-1295.
Foss GL. Clinical administration of androgens. Lancet. 1939;i:502- 504.
Johnsen SG, Bennett EP, Jensen VG. Therapeutic effectiveness of oral testosterone. Lancet. 1974;ii:1473-1475.
Vest SA, Howard JE. Clinical experiments with androgens. IV: a method of implantation of crystalline testosterone. J Am Med Assoc. 1939;13:1869-1872.
Cantrill J, Dewis P, Large D, Newman M, Anderson D. Which testosterone replacement therapy? Clin Endocrinol (Oxf). 1984;21: 97-107.
Conway AJ, Boylan LM, Hose C, Ross G, Handelsman DJ. Randomized clinical trial of testosterone replacement therapy in hy- pogonadal men. Int J Androl. 1988;11:247-264.
Handelsman DJ, Conway AJ, Boylan LM, Turtle JR. Testicular function in potential sperm donors: normal ranges and the effects of smoking and varicocele. Int J Androl. 1984;7:369-382.
Handelsman DJ, Conway AJ, Boylan LM, van Nunen SA. Testicular function and fertility in men with homozygous alpha-1 antitrypsin deficiency. Andrologia. 1986;18:406-412.
Grunstein RR, Handelsman DJ, Lawrence SJ, Blackwell C, Cater - son ID, Sullivan CE. Hypothalamic dysfunction in sleep apnea: reversal by nasal continuous positive airways pressure, J Clin Endocrinol Metab. 1989;68:352-358.
Robinson BN, Anderson GD, Cohen E, et al. SIR Users Manual— version 2. Chicago: Scientific Information Retrieval Inc; 1980.
Dixon WJ, ed. BMDP statistical software. Berkeley: University of California Press; 1985.
Gandy HM. Androgens. In: Fuchs F, Klopper A, eds. Endocrinology of pregnancy, 2nd ed. Hagerstown: Harper & Row; 1977;123-156.
Snyder PJ. Clinical use of androgens, Annu Rev Med. 1984;35:207- 217.
Nieschlag E. Current status of testosterone substitution therapy. Int J Androl. 1982;5:225-228.
Sokol RZ, Swerdloff RS. Practical considerations in the use of androgen therapy. In: Santen RJ, Swerdloff RS, eds. Male reproductive dysfunction. New York: Marcel Dekker; 1986;211-225,
Bishop PMF, Folley SJ. Absorption of hormone implants. Lancet. 1951;ii:229-232.
Emmens W. Rate of absorption of androgens and estrogens in free and esterified form from subcutaneously implanted pellets. Endocrinology. 1941;28:633-642.
