M Savvas, J W W Studd, I Fogelman, M Dooley, J Montgomery, B Murby

Dulwich Hospital and Fertility and Endocrinology Centre, Lister Hospital, London.

Department of Nuclear Medicine, Guy’s Hospital, London.

Correspondence and requests for reprints to; Mr J W Studd, Dulwich Menopause Clinic, Dulwich Hospital, London SE228PT.

Structured Abstract

Study objective: To compare oral and implanted oestrogens for their effects in preventing post-menopausal osteoporosis.

Design: Non-randomised cohort study of post-menopausal women treated with oral or depot oestrogens and postmenopausal controls.

Setting: Gynaecological endocrine clinic in tertiary referral centre.

Patients: Oral treatment group of 37 postmeno-pausal women (mean age 57·5 years, median 8·75 years from last menstrual period), compared with 41 women given oestrogen implants (mean age 56·2 years, median 9·5 years from last menstrual period) and 36 controls (mean age 51·8 years, median 2·0 years from last menstrual period). Weight was not significantly different among the groups.

Interventions: Oral treatment group was given continuous treatment with cyclic oestrogen and progesterone preparations (Prempak C or Cyclo- progynova) for a median of 8·0 years. Implant group was given subcutaneous implants of oestradiol 50 mg combined with testosterone 100 mg, on average six monthly for a median of 8·5 years. Controls were not treated.

End point: Significant increase in bone density.

Measurements and main results: Bone density measured by dual beam photon absorptiometry was 1·02 (SD 0·13) g hydroxyapatite/cm1 in implant group versus 0·89 < 0·11) in oral group (p < 0·01) and 0·87 (0·14) in controls (p < 0·01). Serum oestradiol con-centration in implant group was (median) 725 pmol/l versus 170 pmol/l in oral group (p < 0·01) and 99 pmol/l in controls (p < 0·01). Serum follicular stimulating hormone was median 1IU/1 (range 1·11) in implant group (equivalent to premenopausal values) versus 43 (4·94) IU/1 in oral group (p < 0·01) and 72 (28-99) IU/1 in controls (p < 0·01).

Conclusions: Subcutaneous oestrogen is more effective than oral oestrogen in preventing osteo-porosis, probably owing to the more physiological (premenopausal) serum oestradiol concentrations achieved. It also avoids problems of compliance that occur with oral treatment.

Introduction

Peak bone mass is achieved in the fourth decade of life in both men and women, after which it decreases with age. The rate at which bone is lost accelerates in women after the menopause to the extent that they have lost half of their skeletal calcium by the age of 70. This leads to the excess of osteoporotic fractures in women compared with men. Albright et al were the first to show the value of oestrogen in preventing postmenopausal osteoporosis,¹ and several prospective studies have confirmed their results.^2-4

Oestrogens may be given orally as tablets or percu- taneously as implants, creams, or patches.⁵ Although oral treatment is standard, subcutaneous implantation is a simple technique that can be performed as an outpatient procedure under local anaesthesia.⁶ Subcutaneous administration has several advantages: the enterohepatic circulation is avoided, gastrointestinal symptoms are reduced, and the ratio of oestradiol to oestrone achieved is physiologically appropriate.⁷ Oral treatment results in an abnormal ratio favouring oestrone as a result of conversion of oestradiol to oestrone in the liver. The percutaneous route also has the advantage that it can be used to give testosterone, if indicated, which avoids the hepatotoxic effects of oral methyltestosterone.

We investigated in a cross sectional study the effects of the route of administration of oestrogen in women attending our clinic who had been treated satisfactorily with oestrogen by various routes for many years for various menopausal symptoms. We compared them with a control group of postmenopausal women who had not started treatment with oestrogen and were attending our clinic for the first time.

Patients and methods

Table I shows the characteristics of the 114 women studied. They were postmenopausal as defined by amenorrhoea for at least one year with a serum follicle stimulating hormone concentration of more than 15 IU/1. Bone density was compared in a control group consisting of 36 untreated women (mean age 51·8 years; median time since last menstrual period 2·0 years); 37 women (mean age 57·5 years; median time since last menstrual period 8·5 years) who had been treated with oral oestrogens for a median of 8·0 years; and 41 women (mean age 56·2 years; median time since last menstrual period 9·5 years) who had been treated with subcutaneous implants of oestradiol and testosterone for a median of 8·5 years. The women treated either orally or subcutaneously, depending on their preference, had had amenorrhoea for a median of one year before starting their treatment.

Table I. Characteristics of 114 women in study.

All women with a uterus who were receiving oral oestrogens had their treatment supplemented with cyclic progestogen (either the combined preparation Prempak C, containing 12 days’ supply of norgestrel (23 women), or Cyclo-progynova, containing 10 days’ supply of levonorgestrel (six)). Women with a uterus receiving hormonal implants were given cyclic nore- thisterone 5 mg daily for the first seven to 13 days of each calendar month to prevent endometrial disorders.⁸ Hormonal implantation was carried out under local anaesthesia during a routine visit to the clinic, the pellets being inserted into the subcutaneous fat of the anterior abdominal wall. The usual dose was oestradiol 50 mg combined with testosterone 100 mg. Rarely, the oestradiol dose was increased to 75 or 100 mg. Implan-tation was repeated as symptoms of the climacteric returned, at about six month intervals, and at these visits bone density was measured and hormones assayed.

Bone density was estimated in the spine at L2-4 and in the neck of the right femur with a Novo 22A BMC-LAB dual photon absorptiometer with gadolinium-153 as the source of radiation.⁹ The absorptiometer was standardised with a solution radio-logically equivalent to hydroxyapatite, and the results were expressed as grams of hydroxyapatite per unit projected area of bone. The precision of this technique is 1-3% and the accuracy 2-5%.¹⁰

Statistical analysis

Data on the bone density, age, and weight of the three groups of patients were normally distributed and were therefore compared by the non-paired Student’s r test. All other variables were analysed with the Mann-Whitney U test as they were not normally distributed.

Results

The women in the two treatment groups were not significantly different in terms of their age, weight, years since the menopause, duration of treatment, or duration of amenorrhoea before treatment. The women in the control group were significantly younger and were fewer years past the menopause (p < 0·01).

Table II summarises the measurements of bone density and plasma concentrations of sex hormones in the three groups. Bone density was significantly increased in the women receiving subcutaneous oestradiol and testosterone compared with the two other groups. In the group receiving oral oestrogens the median serum oestradiol concentration was slightly but not significantly increased compared with that in the control group and the median follicle stimulating hormone concentration was significantly reduced but remained within the postmenopausal range. Women receiving subcutaneous oestrogen and testosterone had a significantly increased median serum oestradiol concentration and a significantly decreased follicle stimulating hormone concentration compared with the other women.

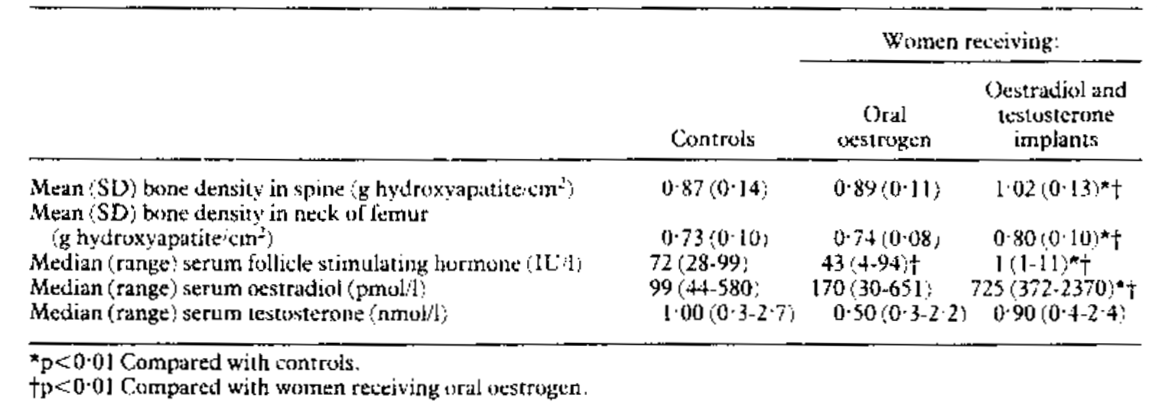

Table II. Bone density and serum concentration of sex hormones in untreated women and seamen who kad been treated with hormones.

Discussion

This study confirms the value of oestrogen replace-ment treatment in preventing postmenopausal loss of bone. The bone density in the spine and neck of the femur in untreated women was maintained in women given a median of 8·0 years of oral treatment but was significantly increased in women who had been treated for a median of 8·5 years with subcutaneous implants of oestradiol and testosterone. The difference between the two treatment groups cannot be explained by a difference in the duration of amenorrhoea before treatment. All of the women receiving subcutaneous oestradiol also received testosterone but at a dosage that reputedly does not have any significant effect on bone.¹¹ The effect of androgens is, however, an important therapeutic variable that needs further evaluation, which is now being done.

The current recommended dose of oral oestrogen for relieving menopausal symptoms and protecting the skeleton is 0·625 mg or 1·25 mg conjugated equine oestrogens or the equivalent dose of oestradiol valerate.¹² The serum oestradiol concentration at this dose will, however, be only slightly raised and the follicle stimulating hormone concentration will remain in the postmenopausal range.^{13, 14} Several studies have shown that higher concentrations of oestradiol are achieved by subcutaneous implantations; the effect was cumulative when implantation was repeated everu six months.^11,15 This is due to the metabolic advantages of the percutaneous route and the elimination of non-compliance, which is reputed to occur in up to 70% of women prescribed oral oestrogens as replacement treatment.¹⁶ Despite the cumulative effects of repeated implantation on plasma oestradioi concentrations no harmful effects have been identified on blood pressure, coagulation of blood, or glucose tolerance. Percutaneous treatment is an efficient route of administering oestrogen as many metabolic changes occurring in the enterohepatic system are avoided and an appropriate ratio of oestradioi to oestrone of about 2:1 results.^7,18 We believe that the difference in bone density between the two treatment groups was due to the higher serum oestradioi concentrations achieved with subcutaneous implants of oestrogen (725 170 pmol/1).

The precise mechanism whereby patients receiving oestrogen implants gain bone is unclear. The higher serum oestradioi concentrations achieved with implantation may stimulate osteoblasts directly, leading to a true gain in bone, or may be more effective in suppressing resorption of bone, thus permitting some recovery of early postmenopausal loss of bone. All women had first started treatment on average about one year after the menopause, a time when rapid postmenopausal bone loss would be expected and therefore when most could be gained by inhibiting resorption of bone and allowing the resulting spaces to be refilled. The increase in bone mass in the women receiving subcutaneous implants was greater in the spine than in the proximal femur, probably because the vertebral bodies consist predominantly of trabecular bone, which has a greater surface area and is metabolically more active than the cortical bone, which predominates in the femoral neck.¹⁹ Nevertheless, Keil et al suggested that even fairly short exposure to oral oestrogen within four years after the menopause may confer long term protection against fracture of the hip.²⁰

Despite the original suggestions of Albright el a l that the collagen of the bone matrix was important, most recent work on postmenopausal osteoporosis has concentrated on calcium and the hormones regulating calcium, with conflicting results. The generalised loss of collagen in the body that occurs with decreasing oestrogen concentrations may be the primary factor causing postmenopausal osteoporosis. The association of osteoporosis with thin skin is well recognised, and we recently showed that there is a 40% decline in the collagen content and thickness of the skin after the menopause that cannot only be prevented with oestrogen but can be corrected to normal values within nine months after the start of percutaneous treatment.^21,22 Decreased skin thickness with reduced collagen content has been associated with osteoporosis in anorexia nervosa (Savvas et al, unpublished results;- The loss of collagen in the skin has been estimated at 1-3% a year and is similar to the rate at which bone is lost after the menopause, which suggests that the collagen in bone may behave similarly to that in skin. After loss of the matrix calcium would be lost as a secondary effect independent of dietary calcium or hormones regulating calcium. The observations that that oestrogen receptors are present on osteoblases (F S Kaplan et el, unpublished results) support this concept.

Clearly, the cornerstone of preventing osteoporosis must now be oestrogen replacement treatment. The results of our cross sectional study confirm the protective effect of oral oestrogens and show an apparent increase in bone mass after treatment with subcutaneous oestradiol and testosterone.

We thank Birthright for its financial support, which made this work possible, and D Cooper and D Lowe, of the computer unit, King’s College School of Medicine and Dentistry, for their help with the statistical analysis.

References

Albright F, Simih PH, Richardson AM. Postmenopausal osteoporosis; its clinikal teatures. JAMA 1941;116:2465-74.

Landsay R. Aitken JM, Anerson JB, Hart DM, MacDonald EB, Clarke AC. Longterm prevention of postmenopausal osteoporosis by oestrogen. Lancet 1976;i;1038-41.

Nachtigall LE, Ntichtigal RH, Nuchiigall RD, Beckman EM. Estrogen repIacement therapy: a ten year prospective study in the relationship to osteoporosis. Obstet Gynecol1979:53:277-81,

Christiansen C, Christiansen MS. Transbut I. Bone mass in postmenopausal women after withdrawal of oestrogen gestagen replacemem therapy. Lances 1981:5:459-6L

Studd JWW. Anderson H.M, Montgomery JC. Hormonal treatment, solcciion of patients—kind and duration of treatment. In: Greenblatt RB, de Gruyiter W. eds. A modern approach to the menopause. Berlin; de Gruvcer, 1986; 129-40.

Thom M. Stuwld JWW. Procedures in practice; hormone implantation. Br Med J 1980:i:648-50.

Studd JWW, Magos AL. Hormone pellet implantation for the menopause and premenstrual tension. Obstet Gynecol Clin North Am 1987;14:229-49.

Studd JWW, Thom M. Oestrogens and endometrial carcinoma. In: Studd JWW ed. Progress in obstetrics and gynaccology. Vol 1. London: Churchill Livingsrone, 1981:182-98.

Neilsen SP, Krolner BL, Photon-beam absorptiometry, In: Dixan AbJ, Russell RGG, Stamp TCB. eds.— a multidisciplinary problem. Symposium No 55, International Congress of the Royal Society of Medicine London; Academic Press, 1983; 105-8.

Murby B, Fogelman I. Bone mineral measurements in clinical practice, Br J Hosp Med 1987;37:453-8

Barlow EH, Abdulla HI, Ruberts ADG, Al Azzawi F. Leggate I. Hart DM, Long term hormone implant therapy—hormonal and clinical effects. Obstet Gynecol 1986;67;321-5.

Lindsay R, Hurt DM, Clark DM, The minimum effective dose of estrogen for the prevention ot post-menopausal bone loss. Obstet Gynecol 1984;63;759,

Powers MS. Schenkel L, Darey PE, Good WR, Balestra JC, Place VA. Pharmacokinetics and pharmacodynamics of cransdermal forms of 17β estradiol: comparison with conventional oral estrogens used for hormone replacement. AM J Obstet Gynecol 1985;152:1099-I06.

Chetkowski Rj, Meldrum DR, Steingold KA, er al. Biologic effects of transdermal estradiol. N Engl J Med 1986;314:1615-20.

Cardozo LD, Gibb DMF, Studd JWW, Tuck SM, Thom MH, Cooper Dj, The use of hormune implants for climacteric symptoms. Am J Obstet Gynecol 1984,148:336-7,

Ravnikar VA. Compliance with hormone therapy, Am J Obstet Gynecol 1987;15:1332-4.

Studd JWW, Dubiel M. Kakkar VV, Thom M, White PJ. The effects of hormone replacement therapy on glucose tolerance, clotting factors, fibrinolysis and placelet behaviour in post-menopausal women. In: Cooke ID, ed. The role of oestrogen:progestogen in the management of the menopause. Lancaster: MTP Press, 1978:41-59.

Thom M, Collins WP, Studd JWW. Hormonal profiles in postmenopausal women after therapy with subcutaneous implants. Br J Obstet Gynaecol 1981;88:426-33.

Smith R. Osteoporosis: cause and management. Br Med J 1987;294:329-32.

Keil DP, Felson DT, Anderson JJ, Wilson DWF, Moskowitz MA. Hip fractures and the use of estrogens in postmenopausal women. N Engl J Med l987;317;169-74.

Brincat M, Momiz CF, Studd JWW, et al. The long term effects of the menopause and of administration of sex hormones. Br J Obstet Gynaecol 1985;92:256-9.

Brincat M, Versi E, Muniz CF, Magos A, De Trafford J, Studd JWW. Skin collagen changes in post-menopausal women receiving different regimes of estrogen therapy. Obstet Gynecol 1987;70:123.

Savvas M, Brincat M, Studd JWW. Postmenopausal osteoporosis. Br J Hasp Med 1987;38:16,

Birkenhager-Frenkel DH. A signiticant lack of collagen in osteoporotic bone. In Christiansen C, Johansen JS, Riis BJ, eds. Proceedings of the international symposium on osteoporosis. Copenhagen Osteopress Aps, 1987;443-5.
